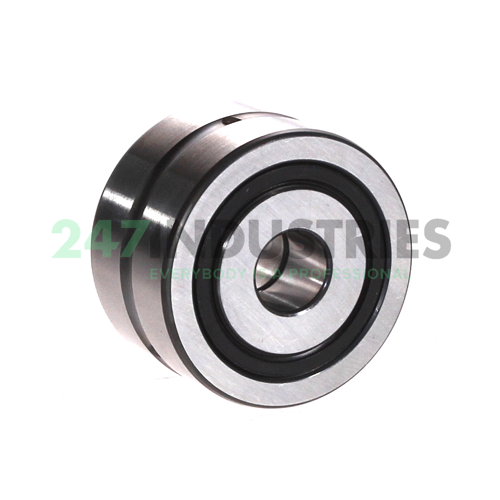

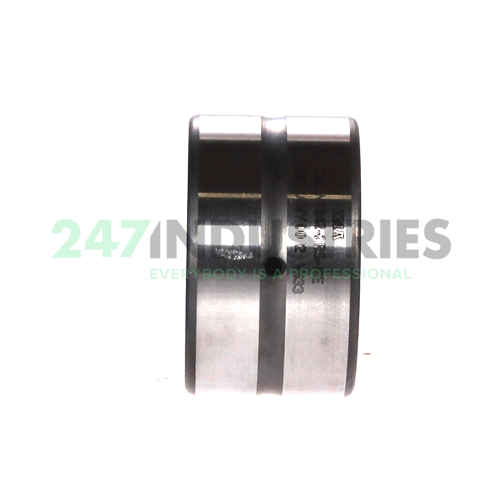

ZKLN1242-2RS-PE INA

Double direction angular contact thrust ball bearing

Stock
55 pcs in stock and ready for shipment
Brand INA
Article number ZKLN1242-2RS-PE INA
Inside diameter 12mm
Outside diameter 42mm
Width 25mm
Product description

The ZKLN1242-2RS-PE INA is a double direction angular contact thrust ball bearing. This precision bearing type, also known as an axial angular contact ball bearing, is designed for use in screw drives and other applications requiring high running accuracy and load capacity. The bearing consists of a plastic cage with a double row of balls, a thick-walled outer ring, and a split inner ring. Thanks to the 60-degree contact angle, radial and high axial forces can be absorbed in both directions.

The ZKLN1242-2RS-PE INA is suitable for installation in a housing bore. The bearing’s outer ring is secured with a cover, locknut, or other clamping mechanism. With the ZKLN1242-2RS-PE INA, a compact, rigid bearing arrangement can be achieved that is easy to assemble and disassemble.

The ZKLN1242-2RS-PE INA is a bearing variant with less strict tolerances compared to the higher-priced version without the PE suffix. This bearing is very suitable for applications where a bearing arrangement with lower precision is sufficient. The adjacent structure does not need to be engineered as precisely, keeping costs low.

Read more Show less
Help with this product

Downloads and links

Similar to: ZKLN1242-2RS-PE INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 12
  2. Outer (D) MM 42
  3. Width (B) MM 25
  4. Inner (d) Inch 0.4724
  5. Outer (D) Inch 1.6535
  6. Width (B) Inch 0.9843
  7. Width (b) mm 25

Suffix description

  1. 2RS Lip Seal At Both Sides Of The Bearing, Axial Fitting
  2. PE Enlarged Diameter Tolerance And Axial Runout To P5 Tolerance Class For Radial Bearings

Technical details

  1. Availability 55 pcs
  2. Brand INA
  3. Item number ZKLN1242-2RS-PE INA
  4. Also known as 0027926050000
    BEAS012042-2RS/PE
    BEAS12/42C SQ P60
  5. EAN 4012802078930
  6. Category Angular Contact Thrust Ball Bearings, Double Direction

Weight and Dimensions

  1. Weight (kg) 0.2

Product Properties

  1. Cage Type P - Plastic Molded Cage
  2. Precision P5 Precision (Higher than P6)

Data from Schaeffler (medias)

  1. Axial Static Load Rating C0a (N) 24700
  2. Axial Dynamic Load Rating Ca (N) 16900
  3. Limiting speed for grease lubrication (n G Grease) 9200
  4. Thermally safe operating speed (n ϑ) 3800
  5. ECLASS number 23-05-10-02
  6. ECLASS2 number 23-05-10-02
  7. Medias description Axial angular contact ball bearings ZKLN..-2RS-PE, Increased tolerances, double direction, lip seals on both sides
