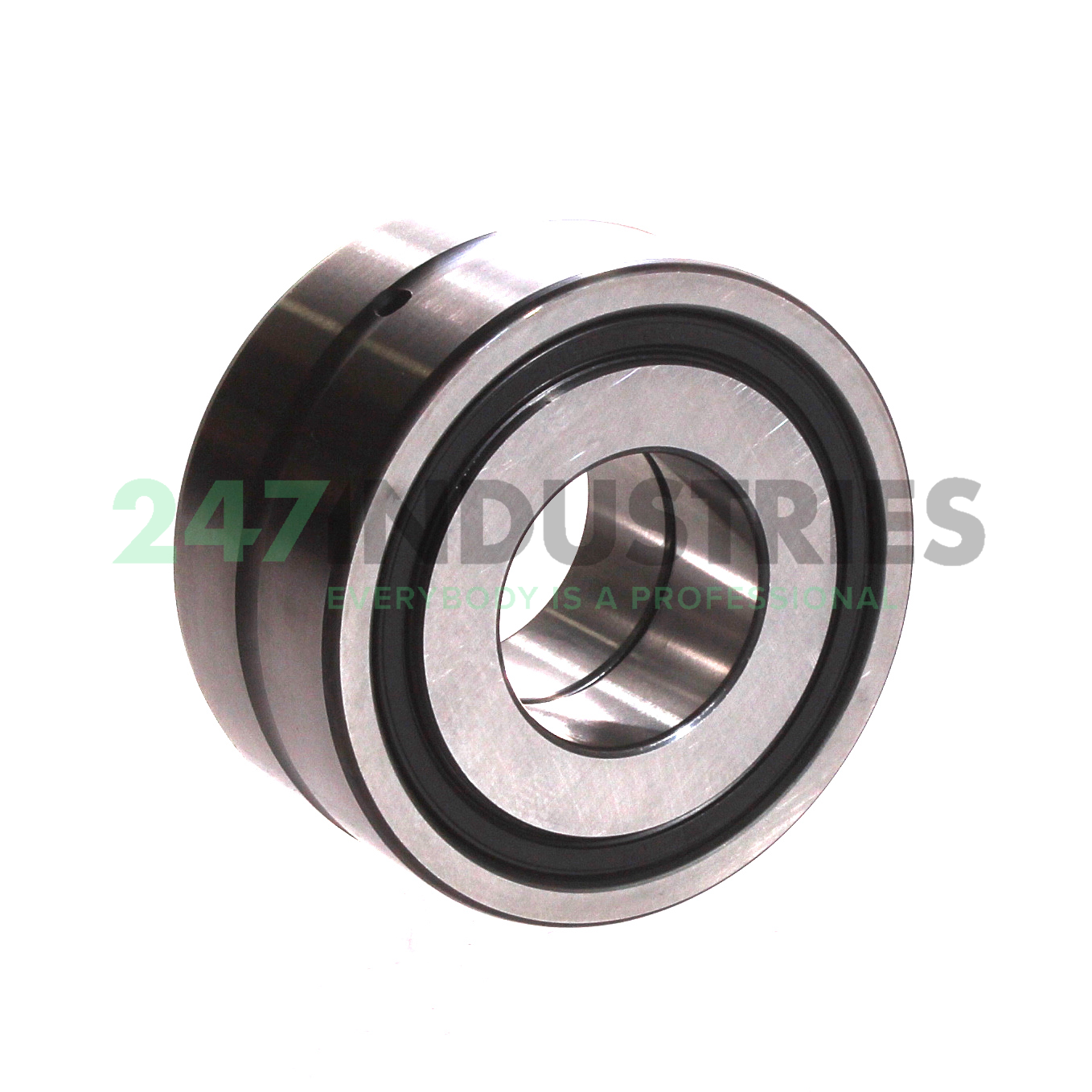

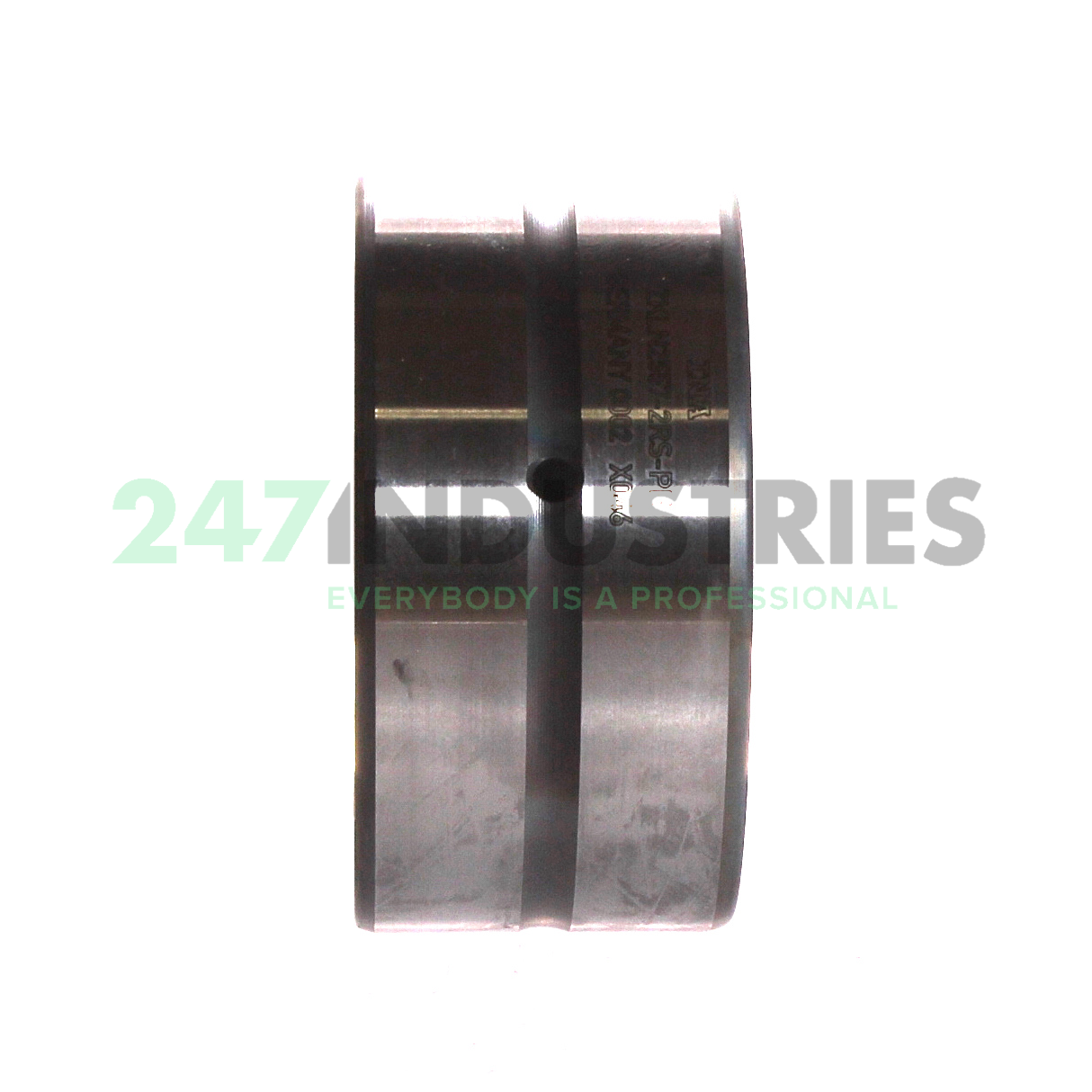

Double direction angular contact thrust ball bearing
| Stock |
|
| Brand | INA |
| Article number | ZKLN2557 2RS-PE INA |
| Inside diameter | 25mm |
| Outside diameter | 57mm |
| Width | 28mm |
The ZKLN2557 2RS-PE INA is a double direction angular contact thrust ball bearing. This precision bearing type, also known as an axial angular contact ball bearing, is designed for use in screw drives and other applications requiring high running accuracy and load capacity. The bearing consists of a plastic cage with a double row of balls, a thick-walled outer ring, and a split inner ring. Thanks to the 60-degree contact angle, radial and high axial forces can be absorbed in both directions.
The ZKLN2557 2RS-PE INA is suitable for installation in a housing bore. The bearing’s outer ring is secured with a cover, locknut, or other clamping mechanism. With the ZKLN2557 2RS-PE INA, a compact, rigid bearing arrangement can be achieved that is easy to assemble and disassemble.
The ZKLN2557 2RS-PE INA is a bearing variant with less strict tolerances compared to the higher-priced version without the PE suffix. This bearing is very suitable for applications where a bearing arrangement with lower precision is sufficient. The adjacent structure does not need to be engineered as precisely, keeping costs low.
