ZKLN2557-2Z-XL INA

Double direction angular contact thrust ball bearing

Stock
12 pcs in stock and ready for shipment
Brand INA
Article number ZKLN2557-2Z-XL INA
Inside diameter 25mm
Outside diameter 57mm
Width 28mm
Product description

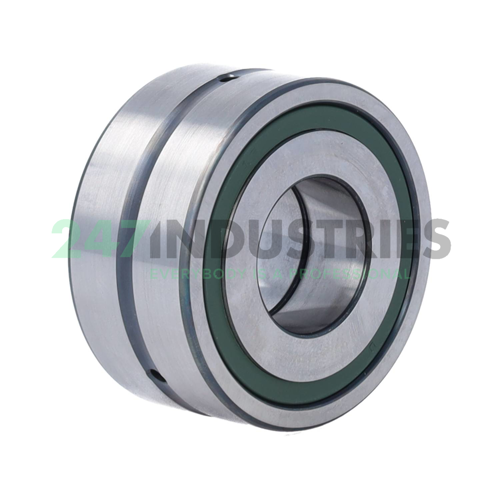

The ZKLN2557-2Z-XL INA is a double direction angular contact thrust ball bearing. This precision bearing type, also known as an axial angular contact ball bearing, is designed for use in screw drives and other applications requiring high running accuracy and load capacity. The bearing consists of a plastic cage with a double row of balls, a thick-walled outer ring, and a split inner ring. Thanks to the 60-degree contact angle, radial and high axial forces can be absorbed in both directions.

The ZKLN2557-2Z-XL INA is suitable for installation in a housing bore. The bearing’s outer ring is secured with a cover, locknut, or other clamping mechanism. With the ZKLN2557-2Z-XL INA, a compact, rigid bearing arrangement can be achieved that is easy to assemble and disassemble.

Read more Show less
Help with this product

Downloads and links

Similar to: ZKLN2557-2Z-XL INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 25
  2. Outer (D) MM 57
  3. Width (B) MM 28
  4. Width (b) mm 28

Suffix description

  1. 2Z Gap Seals At Both Sides Of The Bearing
  2. XL X-Life

Technical details

  1. Availability 12 pcs
  2. Brand INA
  3. Item number ZKLN2557-2Z-XL INA
  4. Also known as 0017778900000
    BEAS025057-2Z
    BEAS25/57Z 7 P60
    ZKLN2557-2Z
  5. EAN 4047643182089
  6. Category Angular Contact Thrust Ball Bearings, Double Direction

Weight and Dimensions

  1. Weight (kg) 0.34

Product Properties

  1. Cage Type P - Plastic Molded Cage
  2. Precision P4 Precision (Higher than P5)

Data from Schaeffler (medias)

  1. Axial Static Load Rating C0a (N) 55000
  2. Axial Dynamic Load Rating Ca (N) 30500
  3. Limiting speed for grease lubrication (n G Grease) 7500
  4. Thermally safe operating speed (n ϑ) 4700
  5. ECLASS number 23-05-10-02
  6. ECLASS2 number 23-05-10-02
  7. Medias description Axial angular contact ball bearings ZKLN..-2Z, double direction, gap seals on both sides

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
