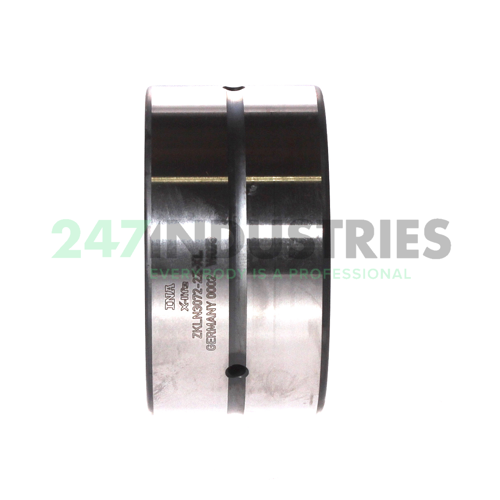

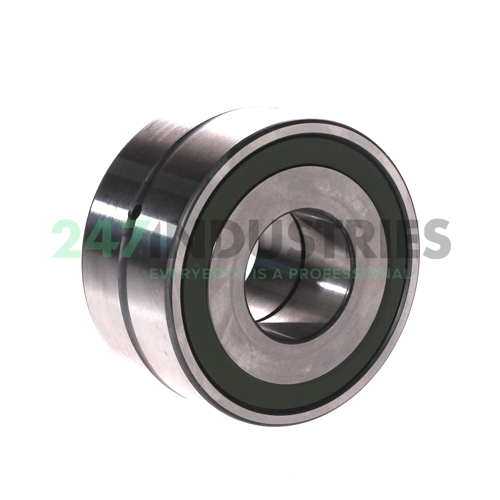

ZKLN3072-2Z-XL INA

Double direction angular contact thrust ball bearing

Stock
5 pcs in stock and ready for shipment
Brand INA
Article number ZKLN3072-2Z-XL INA
Inside diameter 30mm
Outside diameter 72mm
Width 38mm
Product description

The ZKLN3072-2Z-XL INA is a double direction angular contact thrust ball bearing. This precision bearing type, also known as an axial angular contact ball bearing, is designed for use in screw drives and other applications requiring high running accuracy and load capacity. The bearing consists of a plastic cage with a double row of balls, a thick-walled outer ring, and a split inner ring. Thanks to the 60-degree contact angle, radial and high axial forces can be absorbed in both directions.

The ZKLN3072-2Z-XL INA is suitable for installation in a housing bore. The bearing’s outer ring is secured with a cover, locknut, or other clamping mechanism. With the ZKLN3072-2Z-XL INA, a compact, rigid bearing arrangement can be achieved that is easy to assemble and disassemble.

Read more Show less
Help with this product

Downloads and links

Similar to: ZKLN3072-2Z-XL INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 30
  2. Outer (D) MM 72
  3. Width (B) MM 38
  4. Inner (d) Inch 1.1811
  5. Outer (D) Inch 2.8346
  6. Width (B) Inch 1.4961
  7. Width (b) mm 38

Suffix description

  1. 2Z Gap Seals At Both Sides Of The Bearing
  2. XL X-Life

Technical details

  1. Availability 5 pcs
  2. Brand INA
  3. Item number ZKLN3072-2Z-XL INA
  4. Also known as 0005555330000
    ZKLN3072-2Z
  5. EAN 4012802079043
  6. Category Angular Contact Thrust Ball Bearings, Double Direction

Weight and Dimensions

  1. Weight (kg) 0.72

Product Properties

  1. Cage Type P - Plastic Molded Cage
  2. Precision P4 Precision (Higher than P5)

Data from Schaeffler (medias)

  1. Axial Static Load Rating C0a (N) 108000
  2. Axial Dynamic Load Rating Ca (N) 65000
  3. Limiting speed for grease lubrication (n G Grease) 5600
  4. Thermally safe operating speed (n ϑ) 4000
  5. ECLASS number 23-05-10-02
  6. ECLASS2 number 23-05-10-02
  7. Medias description Axial angular contact ball bearings ZKLN..-2Z, double direction, gap seals on both sides
