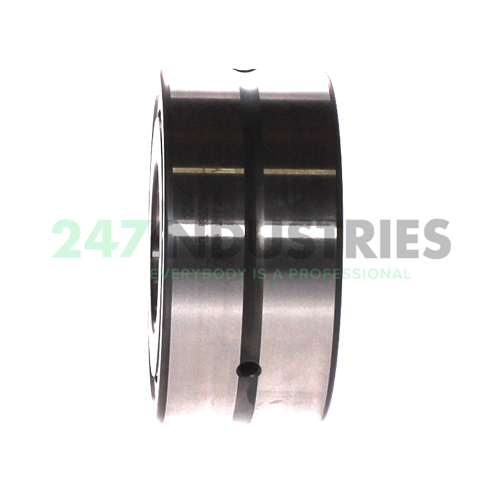

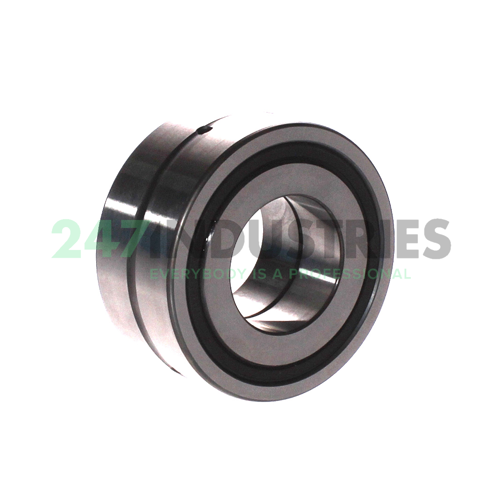

ZKLN3572-2RS-PE INA

Double direction angular contact thrust ball bearing

Stock
6 pcs in stock and ready for shipment
Brand INA
Article number ZKLN3572-2RS-PE INA
Inside diameter 35mm
Outside diameter 72mm
Width 34mm
Product description

The ZKLN3572-2RS-PE INA is a double direction angular contact thrust ball bearing. This precision bearing type, also known as an axial angular contact ball bearing, is designed for use in screw drives and other applications requiring high running accuracy and load capacity. The bearing consists of a plastic cage with a double row of balls, a thick-walled outer ring, and a split inner ring. Thanks to the 60-degree contact angle, radial and high axial forces can be absorbed in both directions.

The ZKLN3572-2RS-PE INA is suitable for installation in a housing bore. The bearing’s outer ring is secured with a cover, locknut, or other clamping mechanism. With the ZKLN3572-2RS-PE INA, a compact, rigid bearing arrangement can be achieved that is easy to assemble and disassemble.

The ZKLN3572-2RS-PE INA is a bearing variant with less strict tolerances compared to the higher-priced version without the PE suffix. This bearing is very suitable for applications where a bearing arrangement with lower precision is sufficient. The adjacent structure does not need to be engineered as precisely, keeping costs low.

Read more Show less
Help with this product

Downloads and links

Similar to: ZKLN3572-2RS-PE INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 35
  2. Outer (D) MM 72
  3. Width (B) MM 34
  4. Width (b) mm 34

Suffix description

  1. 2RS Lip Seal At Both Sides Of The Bearing, Axial Fitting
  2. PE Enlarged Diameter Tolerance And Axial Runout To P5 Tolerance Class For Radial Bearings

Technical details

  1. Availability 6 pcs
  2. Brand INA
  3. Item number ZKLN3572-2RS-PE INA
  4. Also known as 0051908860000
  5. EAN 4047643180573
  6. Category Angular Contact Thrust Ball Bearings, Double Direction

Weight and Dimensions

  1. Weight (kg) 0.51

Product Properties

  1. Cage Type P - Plastic Molded Cage
  2. Precision P5 Precision (Higher than P6)

Data from Schaeffler (medias)

  1. Axial Static Load Rating C0a (N) 89000
  2. Axial Dynamic Load Rating Ca (N) 41000
  3. Limiting speed for grease lubrication (n G Grease) 4400
  4. Thermally safe operating speed (n ϑ) 2000
  5. ECLASS number 23-05-10-02
  6. ECLASS2 number 23-05-10-02
  7. Medias description Axial angular contact ball bearings ZKLN..-2RS-PE, Increased tolerances, double direction, lip seals on both sides
