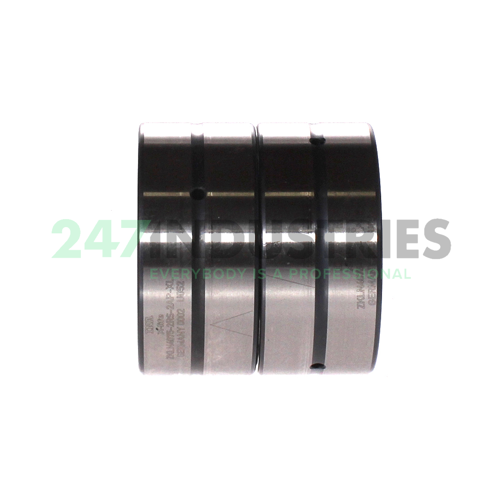

ZKLN4075-2RS-2AP-XL INA

Double direction angular contact thrust ball bearing

Stock
3 pcs in stock and ready for shipment
Brand INA
Article number ZKLN4075-2RS-2AP-XL INA
Inside diameter 40mm
Outside diameter 75mm
Width 68mm
Product description

The ZKLN4075-2RS-2AP-XL INA is a double direction angular contact thrust ball bearing. This precision bearing type, also known as an axial angular contact ball bearing, is designed for use in screw drives and other applications requiring high running accuracy and load capacity. The bearing consists of a plastic cage with a double row of balls, a thick-walled outer ring, and a split inner ring. Thanks to the 60-degree contact angle, radial and high axial forces can be absorbed in both directions.

The ZKLN4075-2RS-2AP-XL INA is suitable for installation in a housing bore. The bearing’s outer ring is secured with a cover, locknut, or other clamping mechanism. With the ZKLN4075-2RS-2AP-XL INA, a compact, rigid bearing arrangement can be achieved that is easy to assemble and disassemble.

Furthermore, the ZKLN4075-2RS-2AP-XL INA comprises a matched pair bearing set. Consequently, a bearing arrangement with higher load capacity and rigidity can be created. The two individual bearings in this set are matched to each other. An arrow-shaped marking on the outside of the outer rings ensures that the bearings are very easy to position correctly.

Read more Show less
Help with this product

Downloads and links

Similar to: ZKLN4075-2RS-2AP-XL INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 40
  2. Outer (D) MM 75
  3. Width (B) MM 68
  4. Width (b) mm 68

Suffix description

  1. 2RS Rubber Seals At Each Side Of The Bearing
  2. 2AP Matched Pair (Twice The Number Of Bearings, Than Without 2AP)
  3. XL X-Life

Technical details

  1. Availability 3 pcs
  2. Brand INA
  3. Item number ZKLN4075-2RS-2AP-XL INA
  4. Also known as 0015788800000
    ZKLN4075-2RS-2AP
  5. EAN 4012802079074
  6. Category Angular Contact Thrust Ball Bearings, Double Direction

Weight and Dimensions

  1. Weight (kg) 1.22

Product Properties

  1. Cage Type P - Plastic Molded Cage
  2. Precision Matched Pair

Data from Schaeffler (medias)

  1. Axial Static Load Rating C0a (N) 202000
  2. Axial Dynamic Load Rating Ca (N) 77000
  3. Limiting speed for grease lubrication (n G Grease) 4000
  4. Thermally safe operating speed (n ϑ) 1800
  5. ECLASS number 23-05-10-02
  6. ECLASS2 number 23-05-10-02
  7. Medias description Axial angular contact ball bearings ZKLN..-2RS-2AP, matched pair, double direction, lip seals on both sides
