Double direction angular contact thrust ball bearing
| Stock |
|
| Brand | INA |
| Article number | ZKLN4090-2Z-XL INA |
| Inside diameter | 40mm |
| Outside diameter | 90mm |
| Width | 46mm |

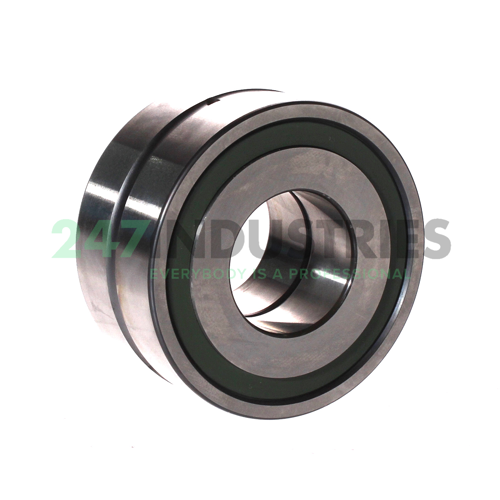

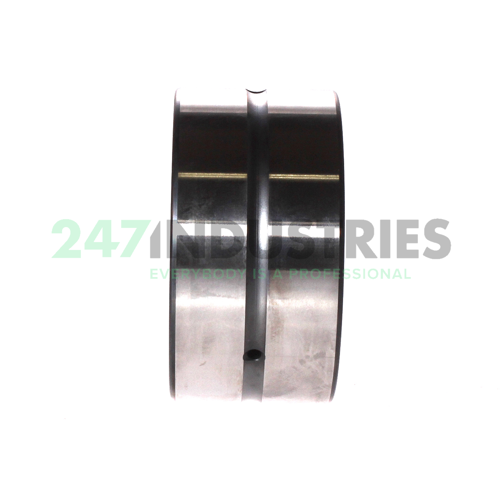

The ZKLN4090-2Z-XL INA is a double direction angular contact thrust ball bearing. This precision bearing type, also known as an axial angular contact ball bearing, is designed for use in screw drives and other applications requiring high running accuracy and load capacity. The bearing consists of a plastic cage with a double row of balls, a thick-walled outer ring, and a split inner ring. Thanks to the 60-degree contact angle, radial and high axial forces can be absorbed in both directions.
The ZKLN4090-2Z-XL INA is suitable for installation in a housing bore. The bearing’s outer ring is secured with a cover, locknut, or other clamping mechanism. With the ZKLN4090-2Z-XL INA, a compact, rigid bearing arrangement can be achieved that is easy to assemble and disassemble.
