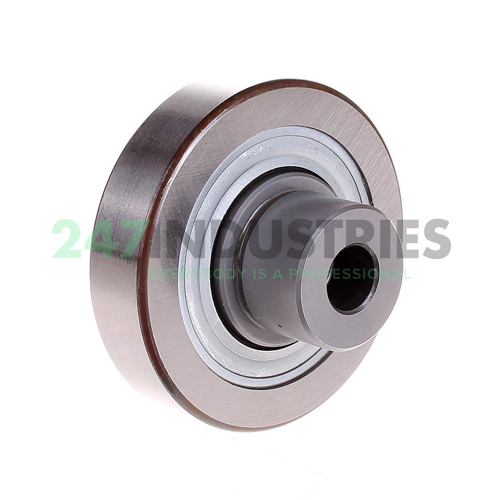

ZL205-DRS INA

Ball-bearing stud type track roller

Stock
20 pcs in stock and ready for shipment
Brand INA
Article number ZL205-DRS INA
Inside diameter 25mm
Outside diameter 62mm
Width 33mm
Product description

The ZL205-DRS INA is a ball-bearing stud type track roller or cam follower, of which the rolling elements combine low friction with high precision. Cam followers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Instead of an inner ring, they feature a solid, threaded stud, enabling easy mounting. Axial loads due to alignment errors or misalignment can be absorbed in both directions. They are not mounted in a housing bore, but a flat (counter) track provides support.

The ZL205-DRS INA is equipped with a cage that prevents the rolling elements from coming into contact with each other. This design allows for a controlled movement of the rolling elements. There is lower friction compared to full complement cam followers, allowing for higher rotational speeds and less heat generation. Common applications of support rollers include conveyor systems, linear guidance systems, and cam mechanisms.

Read more Show less
Help with this product

Downloads and links

Similar to: ZL205-DRS INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 25
  2. Outer (D) MM 62
  3. Width (B) MM 33
  4. Inner (d) Inch 0.9843
  5. Outer (D) Inch 2.4409
  6. Width (B) Inch 1.2992
  7. Fit diameter of roller stud / stud (d 1) mm 25
  8. Width (b) mm 33,8

Suffix description

  1. DRS Lip Seal On The Stud Side

Technical details

  1. Availability 20 pcs
  2. Brand INA
  3. Item number ZL205-DRS INA
  4. Also known as 0009037790000
  5. EAN 4012802807134
  6. Category Cam Follower

Weight and Dimensions

  1. Weight (kg) 0.332

Product Properties

  1. Seal L - LS-seal at One Side
  2. Excenterring Other Mounting Method
  3. Running Surface Standard

Data from Schaeffler (medias)

  1. Basic dynamic load rating, radial (C r w) 13200
  2. Basic static load rating, radial (C 0r) 7200
  3. Fatigue load limit, radial (C ur w) 365
  4. Speed on permanent grease lubrication (n D G) 5500
  5. ECLASS number 23-05-15-90
  6. ECLASS2 number 23-05-15-90
  7. Medias description Stud type track roller ZL2..-DRS, single row, no eccentric
