2SIEK80-4B2-B14 Cantoni & C.

80-4P 0,75kW 230/400V B14 AL

Stock
not in stock
Brand Cantoni & C.
Article number 2SIEK80-4B2-B14 Cantoni & C.
Rated power 0.75kW

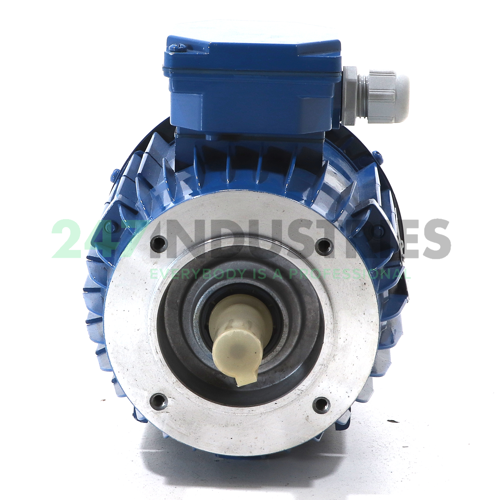

Mounting B14 (inner flange)
Frequency 50/60 Hz
Speed (RPM) 1500 / 4-Poles
Product description
Read more Show less
Help with this product

Similar to: 2SIEK80-4B2-B14 Cantoni & C.

Loading similair products

Product specifications

Technical details

  1. Availability 0 pcs
  2. Brand Cantoni & C.
  3. Item number 2SIEK80-4B2-B14 Cantoni & C.
  4. Category 3-Phase Motors

Weight and Dimensions

  1. Weight (kg) 9.65

Product Properties

  1. Rated power (kW) 0.75
  2. Speed at 50Hz (rpm) 1500 / 4-Poles
  3. Frequency 50/60 Hz
  4. Energy efficiency IE2 = High = EFF1
  5. Mounting B14 (inner flange)
  6. Brake No Brake
  7. IP Class IP55
  8. Explosion safety (Atex) No protection
  9. IEC Framesize 80

Detailed Product Properties

  1. Voltage 220-230VD / 380-400VY
  2. IEC Framesize 80
  3. Shaft diameter (mm) 19
  4. Housing material Alu
  5. AC/DC AC
  6. Standard IEC
  7. Shaft height IEC in JDE 080
  8. Shaft length (mm) 40
  9. Shaft key width (mm) 6
  10. Shaft key length (mm) 32
  11. Thread shaft bore M6
  12. Shaft height, B3 mounted (mm) 80
  13. Width foot holes, B3 mounted (mm) 125
  14. Length foot holes, B3 mounted (mm) 100
  15. Diameter foot holes (mm) 9.5
  16. Outer diameter flange B5/V1/B35/V3 (mm) 200
  17. Spigot B5/V1/B35/V3 (mm) 130
  18. Pitch circle diameter B5/V1/B35/V3 (mm) 165
  19. Number of flange holes 4
  20. Diameter flange holes B5/V1/B35/V3 (mm) 12
  21. Pitch circle diameter B14/B34/V18/V19 (mm) 100
  22. Thread flange holes B14/B34/V18/V19 M6
  23. Outer diameter flange B14/B34/V18/V19 (mm) 120
  24. Spigot B14/B34/V18/V19 (mm) 80
Show all details Show less
