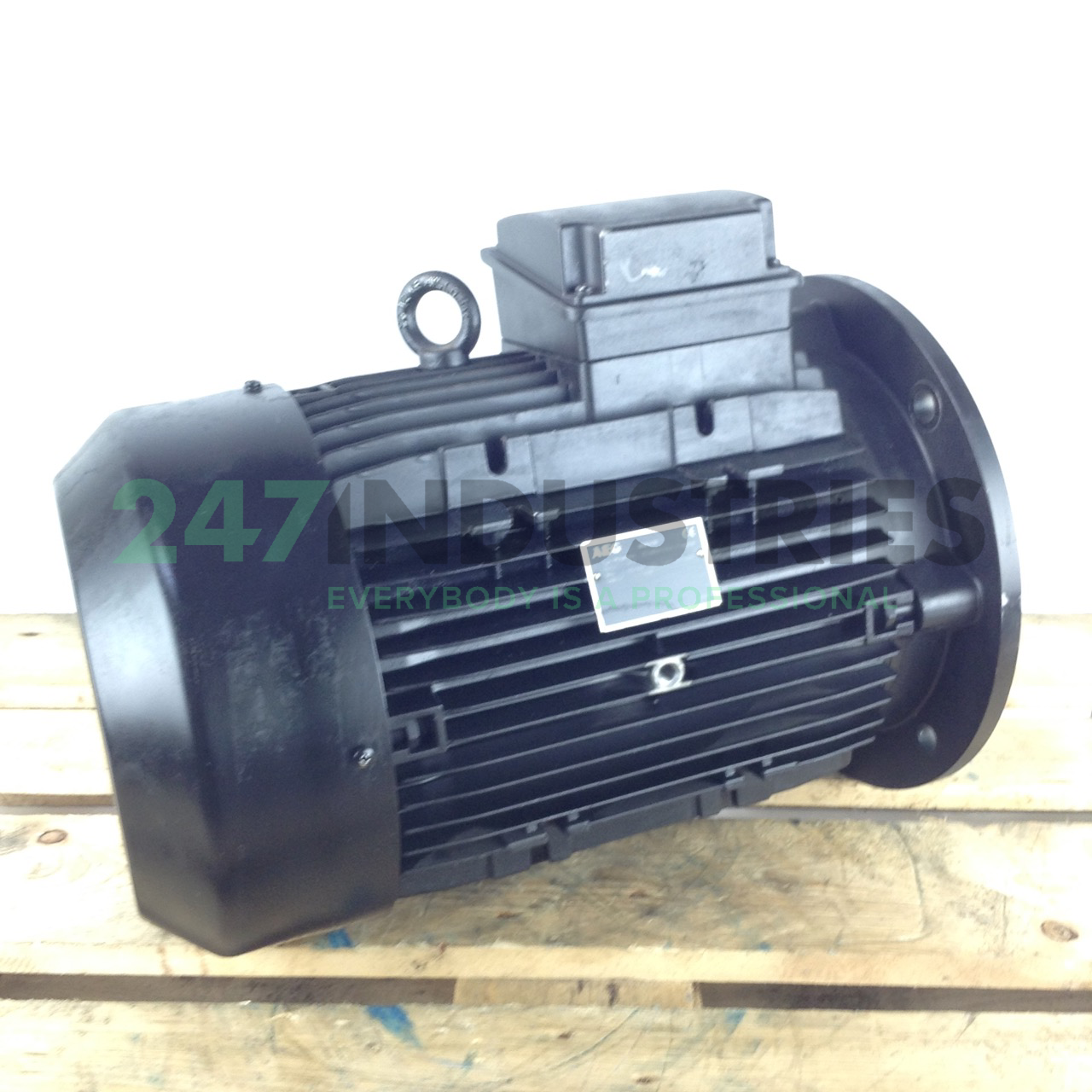

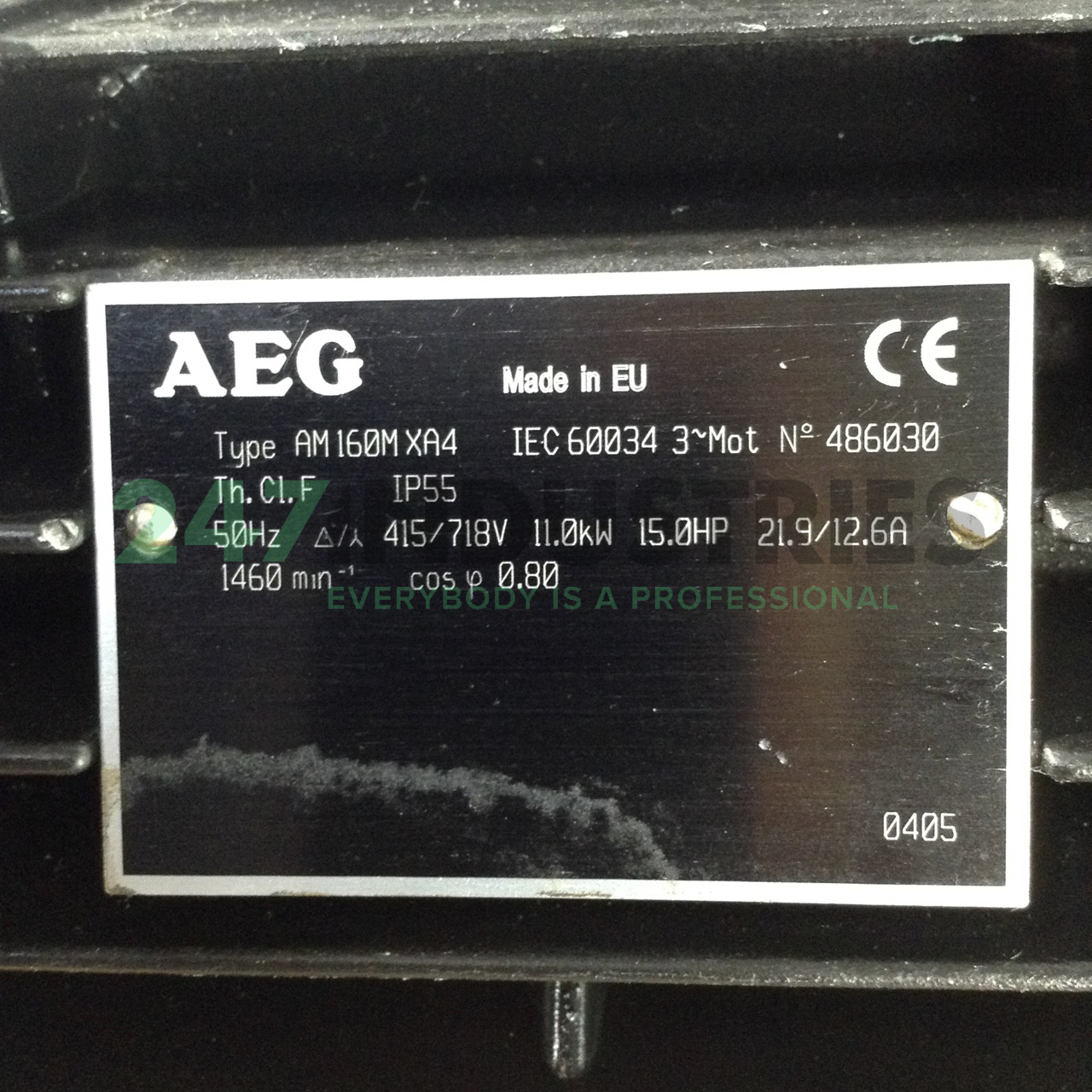

AM160MXA4 AEG

Technical details

1. Availability 0 pcs
2. Brand AEG
3. Item number AM160MXA4 AEG
4. Category 3-Phase Motors

Weight and Dimensions

1. Weight (kg) 86

Product Properties

1. Rated power (kW) 11
2. Speed at 50Hz (rpm) 1500 / 4-Poles
3. Frequency 50 Hz
4. Energy efficiency IE1 = standard = EFF2

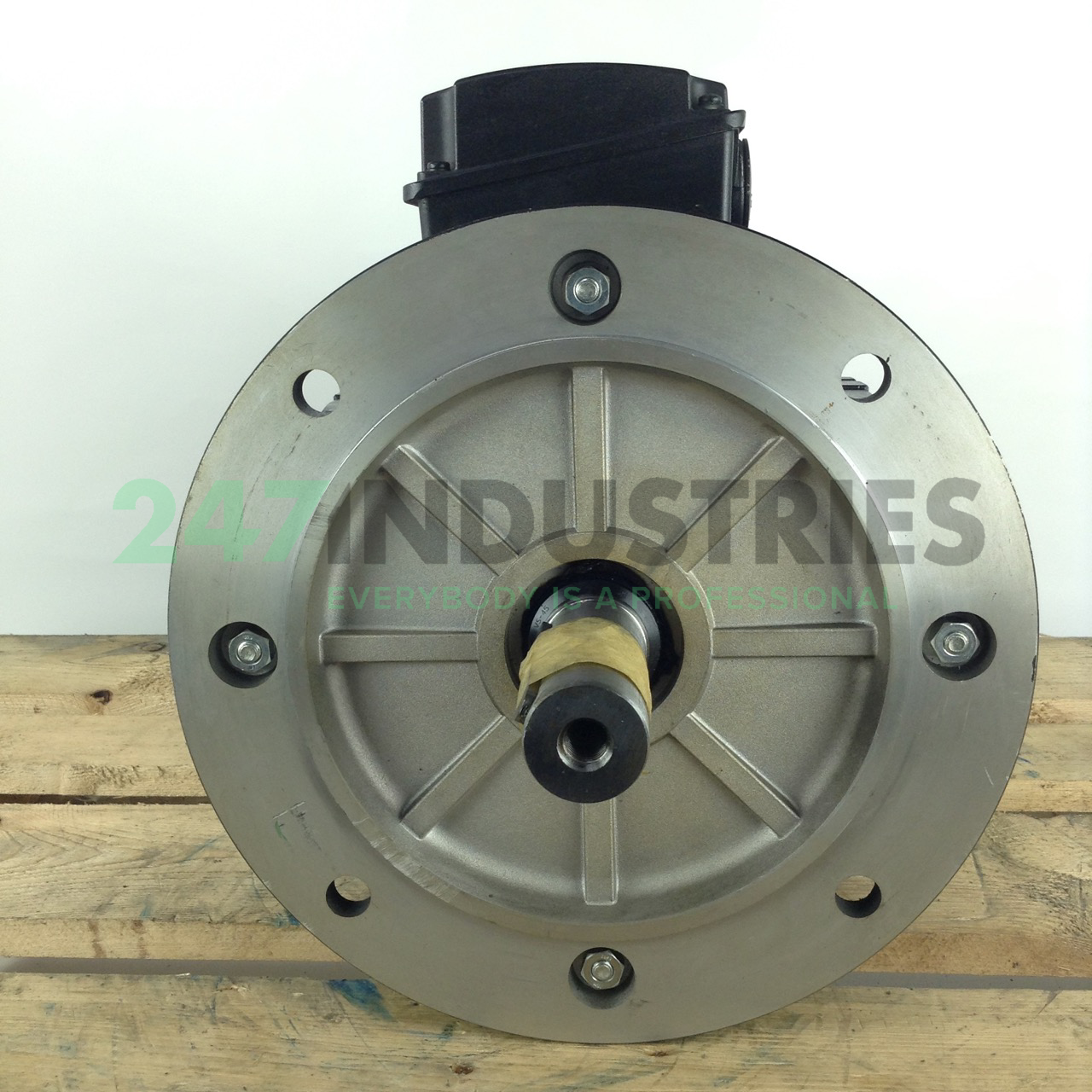

5. Mounting B5 (outer flange)
6. Brake No Brake
7. IP Class IP55
8. Explosion safety (Atex) No protection
9. IEC Framesize 160

Detailed Product Properties

1. Voltage All other voltages
2. IEC Framesize 160
3. Shaft diameter (mm) 42
4. Housing material Alu
5. AC/DC AC
6. Standard IEC
7. Shaft height IEC in JDE 160
8. Shaft length (mm) 110
9. Shaft key width (mm) 12
10. Shaft key length (mm) 90
11. Thread shaft bore M16
12. Shaft height, B3 mounted (mm) 160
13. Width foot holes, B3 mounted (mm) 254
14. Length foot holes, B3 mounted (mm) S=286, M=311
15. Diameter foot holes (mm) 15
16. Outer diameter flange B5/V1/B35/V3 (mm) 350
17. Spigot B5/V1/B35/V3 (mm) 250
18. Pitch circle diameter B5/V1/B35/V3 (mm) 300
19. Number of flange holes 4
20. Diameter flange holes B5/V1/B35/V3 (mm) 18.5
21. Pitch circle diameter B14/B34/V18/V19 (mm) 215
22. Thread flange holes B14/B34/V18/V19 M12
23. Outer diameter flange B14/B34/V18/V19 (mm) 250
24. Spigot B14/B34/V18/V19 (mm) 180
