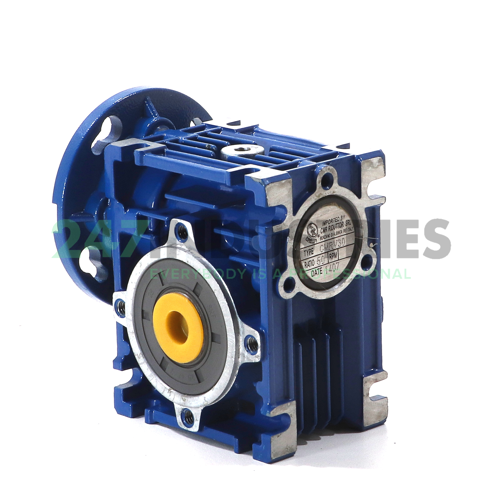

CMRV30-56B14I50 Cemer

Technical details

1. Availability 2 pcs
2. Brand Cemer
3. Item number CMRV30-56B14I50 Cemer
4. Category Gearboxes

Weight and Dimensions

1. Weight (kg) 1.25

Product Properties

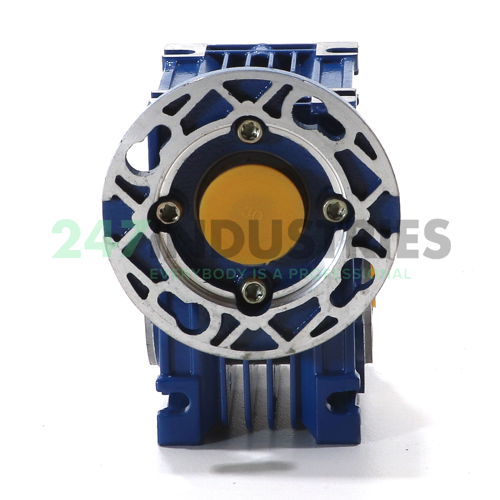

1. Mounting B14 (inner flange)
2. Gear ratio i = n1/n2 50
3. IEC Framesize 56

Detailed Product Properties

1. Shaft diameter (inch) 0.625
2. NEMA framesize 56
3. Shaft height NEMA in JDE 056
4. Shaft length (inch) 1.875
5. Shaft height, B3 mounted (inch) 3.5
6. Width foot holes, B3 mounted (inch) 4.875
7. Length foot holes, B3 mounted (inch) 3
8. Diameter foot holes (inch) 0.3438
9. Pitch flange holes C-face (inch) 5.875
10. Outer diameter flange C-face (inch) 6.5
11. Spigot C-face (inch) 4.5
