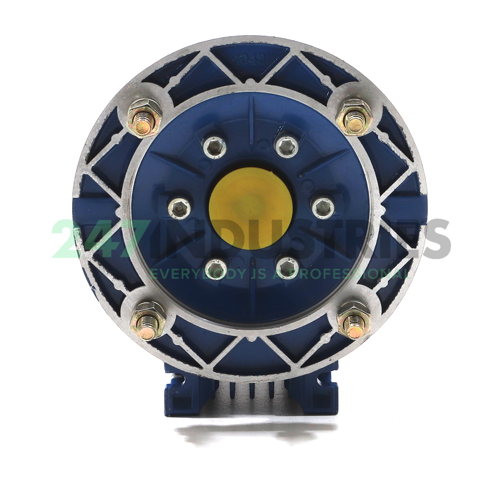

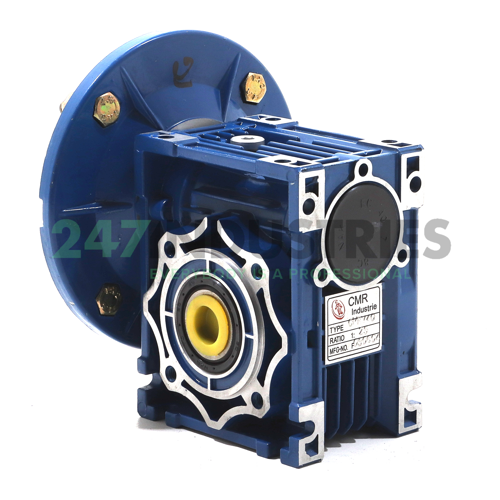

CMRV40-63B5I25 Cemer

Technical details

1. Availability 2 pcs
2. Brand Cemer
3. Item number CMRV40-63B5I25 Cemer
4. Category Gearboxes

Weight and Dimensions

1. Weight (kg) 2.6

Product Properties

1. Mounting B5 (outer flange)
2. Gear ratio i = n1/n2 25
3. IEC Framesize 63

Detailed Product Properties

1. IEC Framesize 63
2. Shaft diameter (mm) 11
3. Shaft height IEC in JDE 063
4. Shaft length (mm) 23
5. Shaft key width (mm) 4
6. Shaft key length (mm) 16
7. Thread shaft bore M4
8. Shaft height, B3 mounted (mm) 63
9. Width foot holes, B3 mounted (mm) 100
10. Length foot holes, B3 mounted (mm) 80
11. Diameter foot holes (mm) 7
12. Outer diameter flange B5/V1/B35/V3 (mm) 140
13. Spigot B5/V1/B35/V3 (mm) 95
14. Pitch circle diameter B5/V1/B35/V3 (mm) 115
15. Number of flange holes 4
16. Diameter flange holes B5/V1/B35/V3 (mm) 10
17. Pitch circle diameter B14/B34/V18/V19 (mm) 75
18. Thread flange holes B14/B34/V18/V19 M5
19. Outer diameter flange B14/B34/V18/V19 (mm) 90
20. Spigot B14/B34/V18/V19 (mm) 60
