CMRV90-100B14I20 Cemer

€ 212,12 ex VAT
€ 256,67 incl. VAT
€ 256,67 incl. VAT
€ 212,12 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

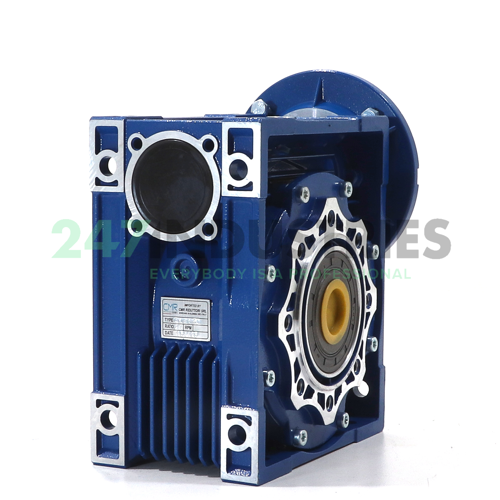

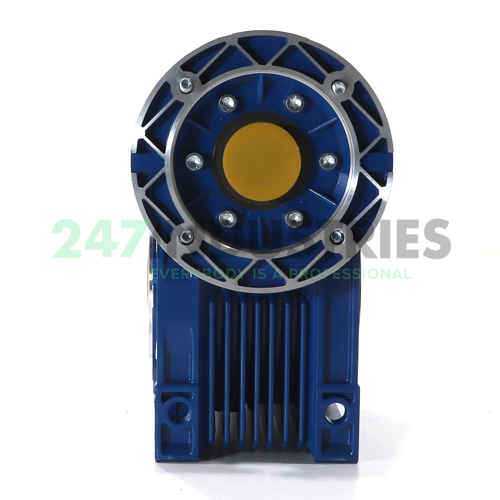

CMRV90-100B14I20 Cemer

Wormgear 100-B14 i=100

Stock
10 pcs in stock and ready for shipment
Brand Cemer
Article number CMRV90-100B14I20 Cemer
Mounting B14 (inner flange)
Product description
Read more Show less
Help with this product

Similar to: CMRV90-100B14I20 Cemer

Loading similair products

Product specifications

Technical details

  1. Availability 10 pcs
  2. Brand Cemer
  3. Item number CMRV90-100B14I20 Cemer
  4. Category Gearboxes

Weight and Dimensions

  1. Weight (kg) 12.1

Product Properties

  1. Mounting B14 (inner flange)
  2. Gear ratio i = n1/n2 100
  3. IEC Framesize 100

Detailed Product Properties

  1. IEC Framesize 100
  2. Shaft diameter (mm) 28
  3. Shaft height IEC in JDE 100
  4. Shaft length (mm) 60
  5. Shaft key width (mm) 8
  6. Shaft key length (mm) 50
  7. Thread shaft bore M10
  8. Shaft height, B3 mounted (mm) 100
  9. Width foot holes, B3 mounted (mm) 160
  10. Length foot holes, B3 mounted (mm) S=286, M=311
  11. Diameter foot holes (mm) 12
  12. Outer diameter flange B5/V1/B35/V3 (mm) 250
  13. Spigot B5/V1/B35/V3 (mm) 180
  14. Pitch circle diameter B5/V1/B35/V3 (mm) 215
  15. Number of flange holes 4
  16. Diameter flange holes B5/V1/B35/V3 (mm) 14.5
  17. Pitch circle diameter B14/B34/V18/V19 (mm) 130
  18. Thread flange holes B14/B34/V18/V19 M8
  19. Outer diameter flange B14/B34/V18/V19 (mm) 160
  20. Spigot B14/B34/V18/V19 (mm) 110
Show all details Show less
