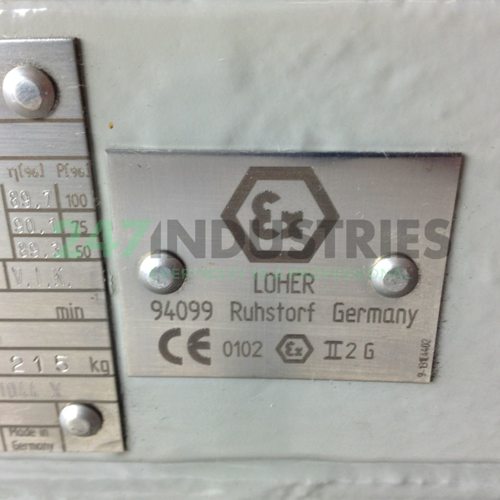

DNGW-180LB-06AB3 Loher

Technical details

1. Availability 0 pcs
2. Brand Loher
3. Item number DNGW-180LB-06AB3 Loher
4. Category Atex Motors

Weight and Dimensions

1. Weight (kg) 215

Product Properties

1. Rated power (kW) 15
2. Speed at 50Hz (rpm) 1000 / 6-Poles
3. Frequency 50 Hz
4. Energy efficiency Not applicable
5. Mounting B3 / 1M1001 (foot)
6. Brake No Brake
7. IP Class IP66
8. Explosion safety (Atex) Zone 1 and 2
9. IEC Framesize 180

Detailed Product Properties

1. Voltage 380-400VD / 660-690VY
2. IEC Framesize 180
3. Shaft diameter (mm) 48
4. Housing material Cast Iron
5. AC/DC AC
6. Standard IEC
7. Shaft height IEC in JDE 180
8. Shaft length (mm) 110
9. Shaft key width (mm) 14
10. Shaft key length (mm) 100
11. Thread shaft bore M16
12. Shaft height, B3 mounted (mm) 180
13. Width foot holes, B3 mounted (mm) 279
14. Length foot holes, B3 mounted (mm) M=241, L=279
15. Diameter foot holes (mm) 15
16. Outer diameter flange B5/V1/B35/V3 (mm) 350
17. Spigot B5/V1/B35/V3 (mm) 250
18. Pitch circle diameter B5/V1/B35/V3 (mm) 300
19. Number of flange holes 4
20. Diameter flange holes B5/V1/B35/V3 (mm) 18.5
