FC180MT-4-B5 Electro Adda

Technical details

1. Availability 0 pcs
2. Brand Electro Adda
3. Item number FC180MT-4-B5 Electro Adda
4. Category 3-Phase Motors

Weight and Dimensions

1. Weight (kg) 111

Product Properties

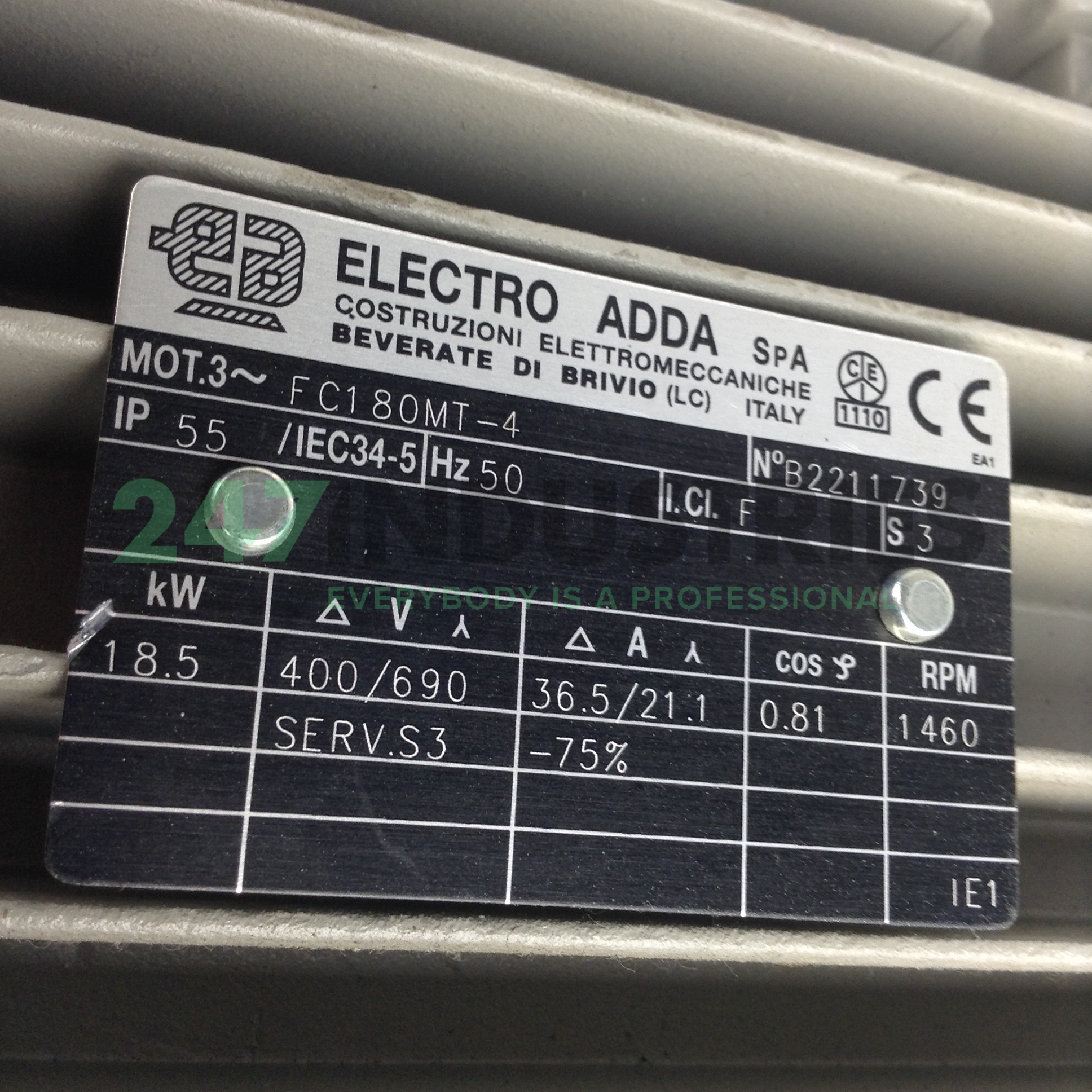

1. Rated power (kW) 18.5
2. Speed at 50Hz (rpm) 1500 / 4-Poles
3. Frequency 50 Hz
4. Energy efficiency IE1 = standard = EFF2
5. Mounting B5 (outer flange)
6. Brake No Brake
7. IP Class IP55
8. Explosion safety (Atex) No protection
9. IEC Framesize 180

Detailed Product Properties

1. Voltage 380-400VD / 660-690VY
2. IEC Framesize 180
3. Shaft diameter (mm) 48
4. Housing material Cast Iron
5. AC/DC AC
6. Standard IEC
7. Shaft height IEC in JDE 180
8. Shaft length (mm) 110
9. Shaft key width (mm) 14
10. Shaft key length (mm) 100
11. Thread shaft bore M16
12. Shaft height, B3 mounted (mm) 180
13. Width foot holes, B3 mounted (mm) 279
14. Length foot holes, B3 mounted (mm) S=286, M=311
15. Diameter foot holes (mm) 15

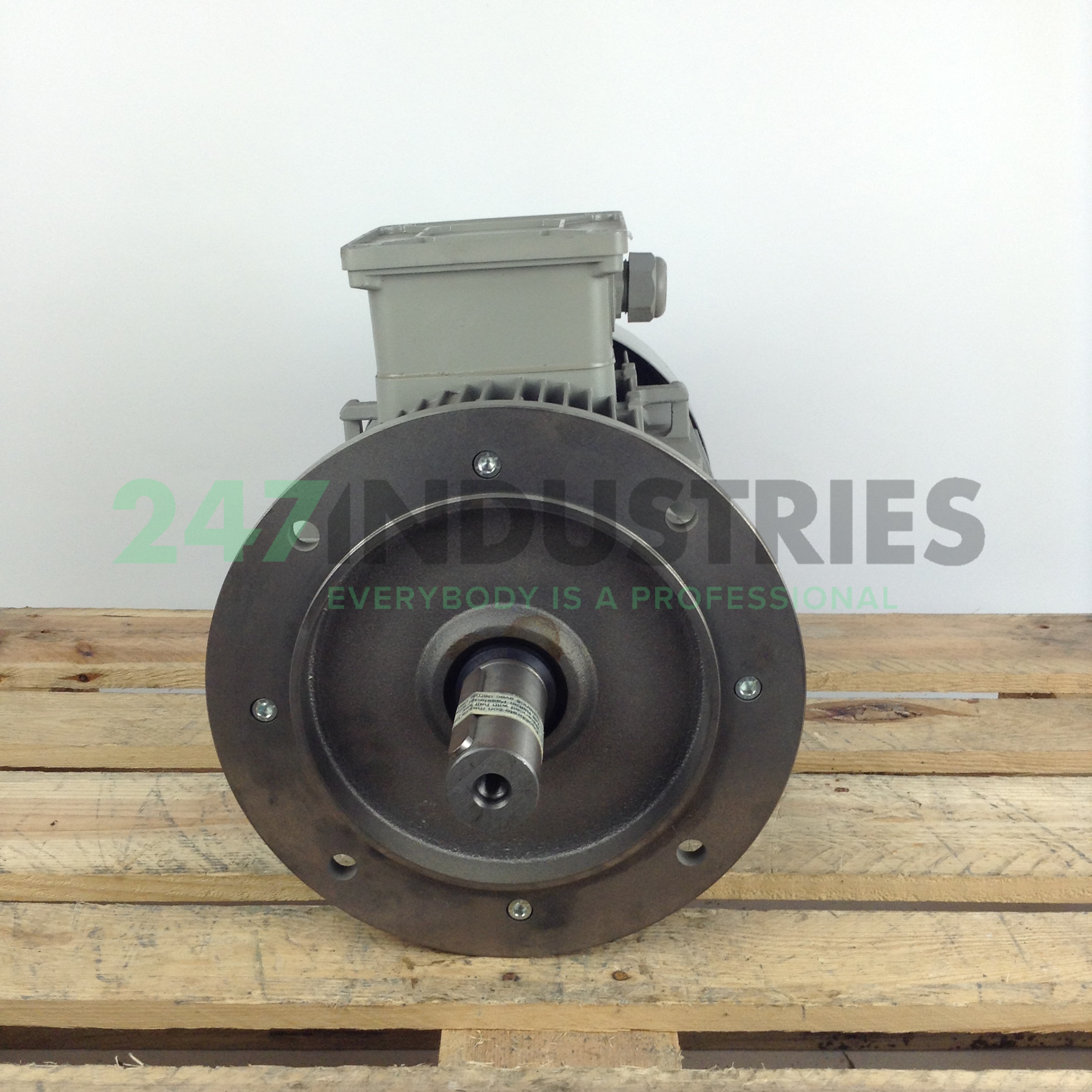

16. Outer diameter flange B5/V1/B35/V3 (mm) 350
17. Spigot B5/V1/B35/V3 (mm) 250
18. Pitch circle diameter B5/V1/B35/V3 (mm) 300
19. Number of flange holes 4
20. Diameter flange holes B5/V1/B35/V3 (mm) 18.5
