FRC210/B3-71B5I38 Varvel

Technical details

1. Availability 0 pcs
2. Brand Varvel
3. Item number FRC210/B3-71B5I38 Varvel
4. Category Gearboxes

Weight and Dimensions

1. Weight (kg) 7.1

Product Properties

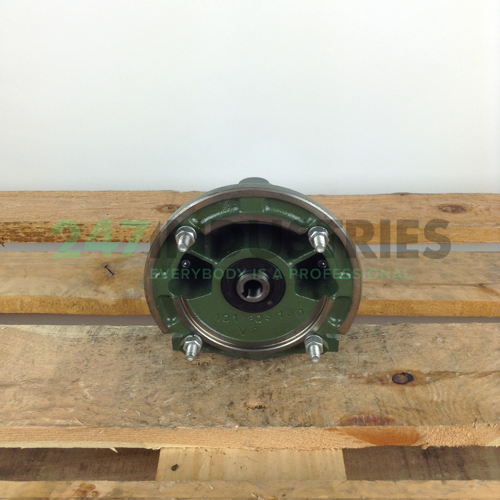

1. Mounting B5 (outer flange)
2. Gear ratio i = n1/n2 38
3. IEC Framesize 71

Detailed Product Properties

1. IEC Framesize 71

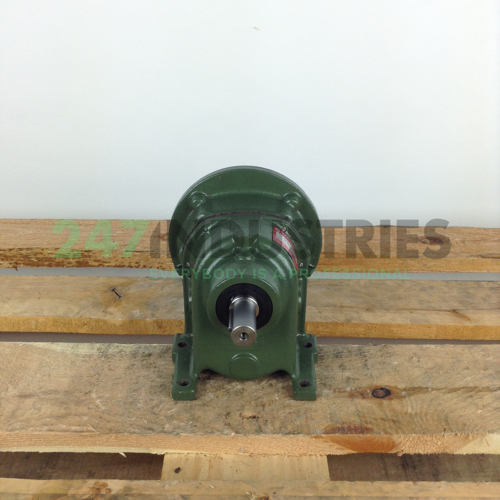

2. Shaft diameter (mm) 14
3. Shaft height IEC in JDE 071
4. Shaft length (mm) 30
5. Shaft key width (mm) 5
6. Shaft key length (mm) 22
7. Thread shaft bore M5
8. Shaft height, B3 mounted (mm) 71
9. Width foot holes, B3 mounted (mm) 112
10. Length foot holes, B3 mounted (mm) 90
11. Diameter foot holes (mm) 7
12. Outer diameter flange B5/V1/B35/V3 (mm) 160
13. Spigot B5/V1/B35/V3 (mm) 110
14. Pitch circle diameter B5/V1/B35/V3 (mm) 130
15. Number of flange holes 4
16. Diameter flange holes B5/V1/B35/V3 (mm) 10
17. Pitch circle diameter B14/B34/V18/V19 (mm) 85
18. Thread flange holes B14/B34/V18/V19 M6
19. Outer diameter flange B14/B34/V18/V19 (mm) 105
20. Spigot B14/B34/V18/V19 (mm) 70
