FRC240B3-90B5I52 Varvel

€ 165,29 ex VAT
€ 200,00 incl. VAT
€ 200,00 incl. VAT
€ 165,29 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

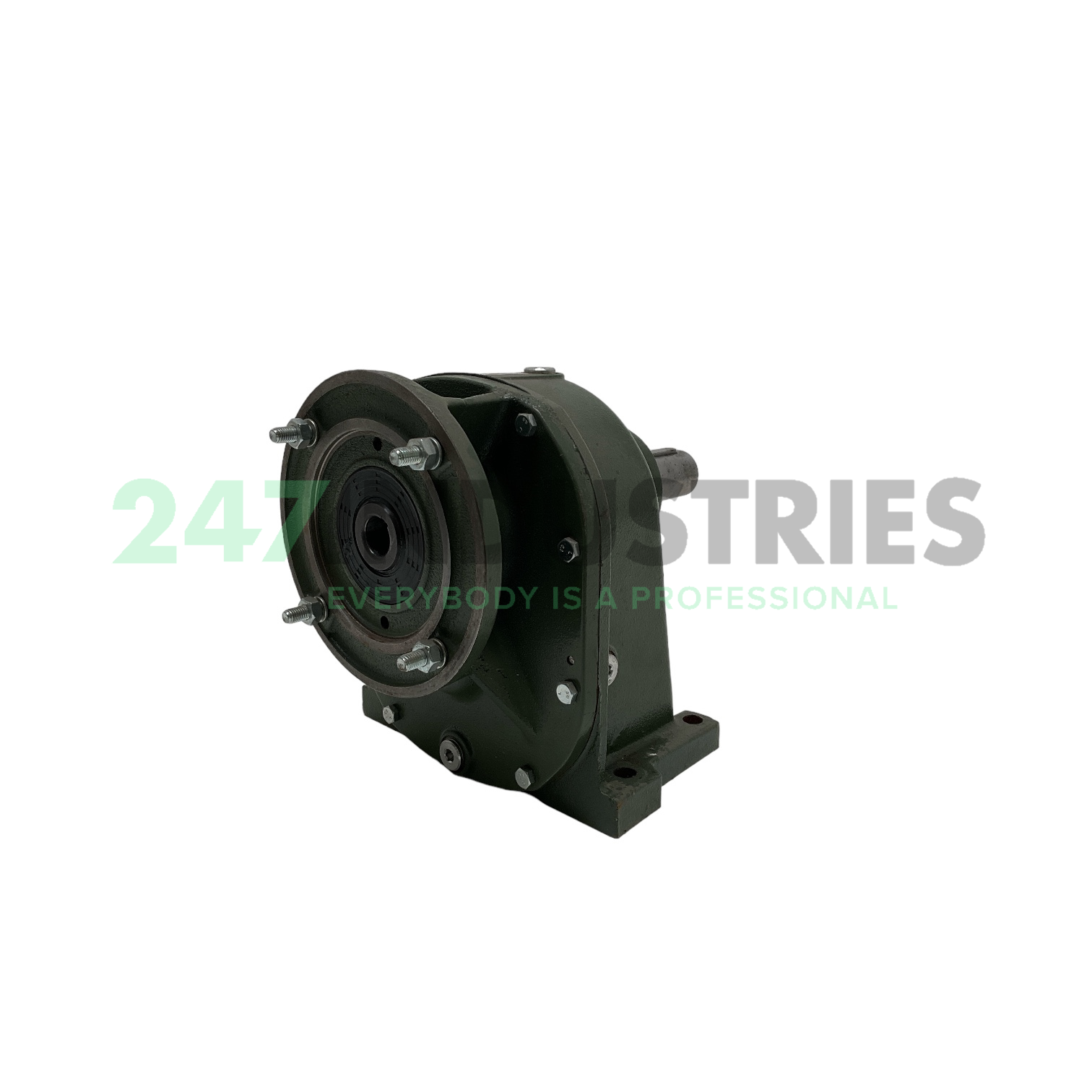

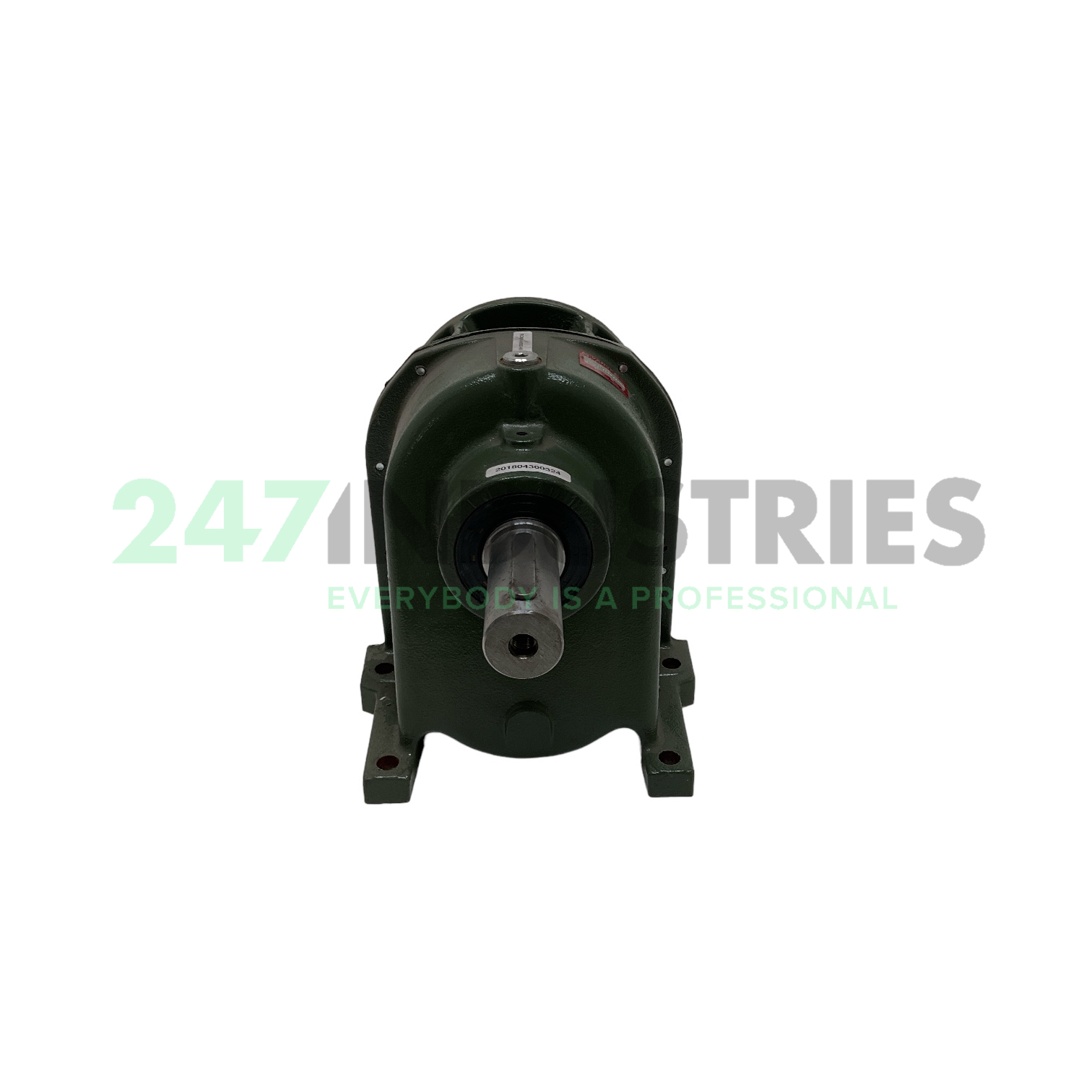

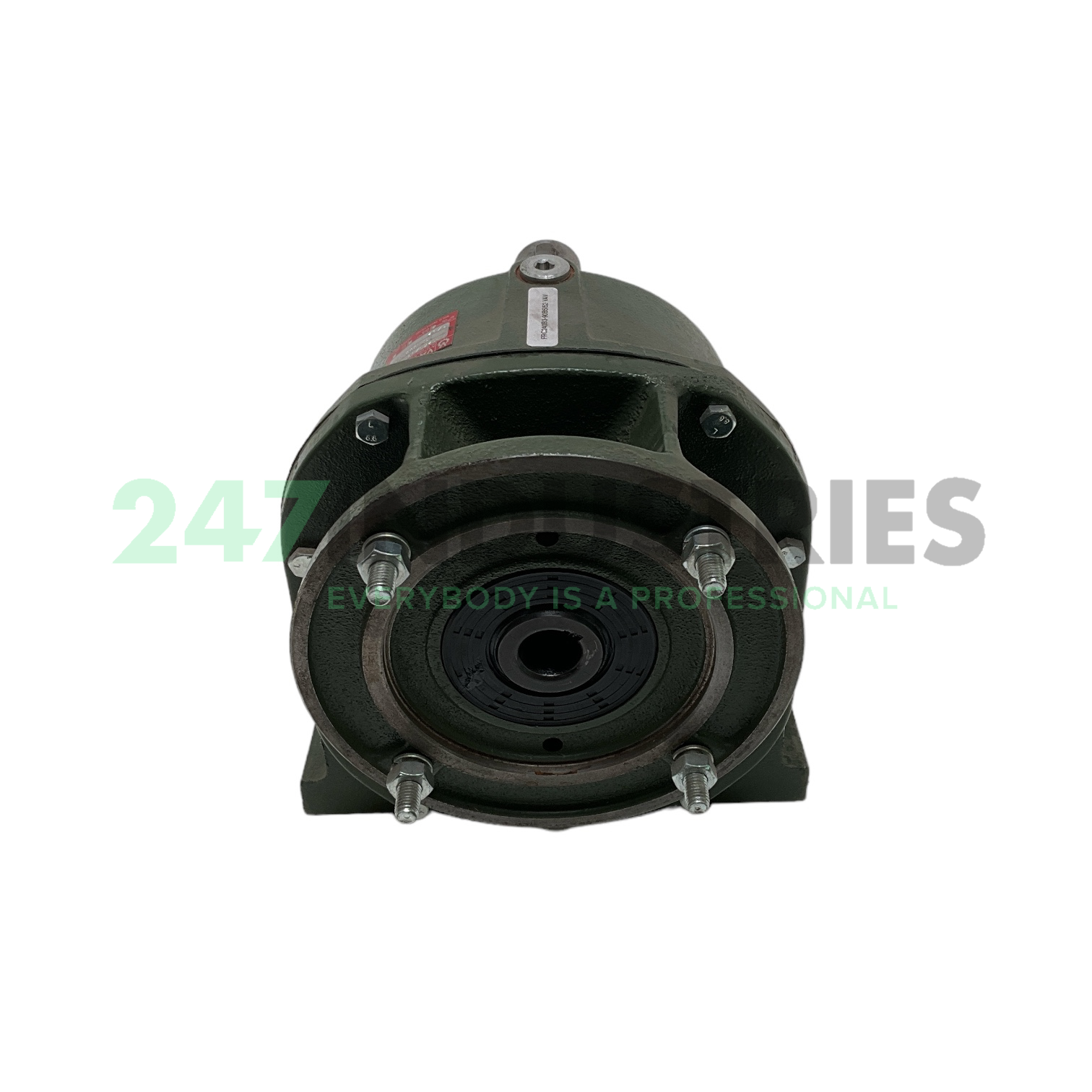

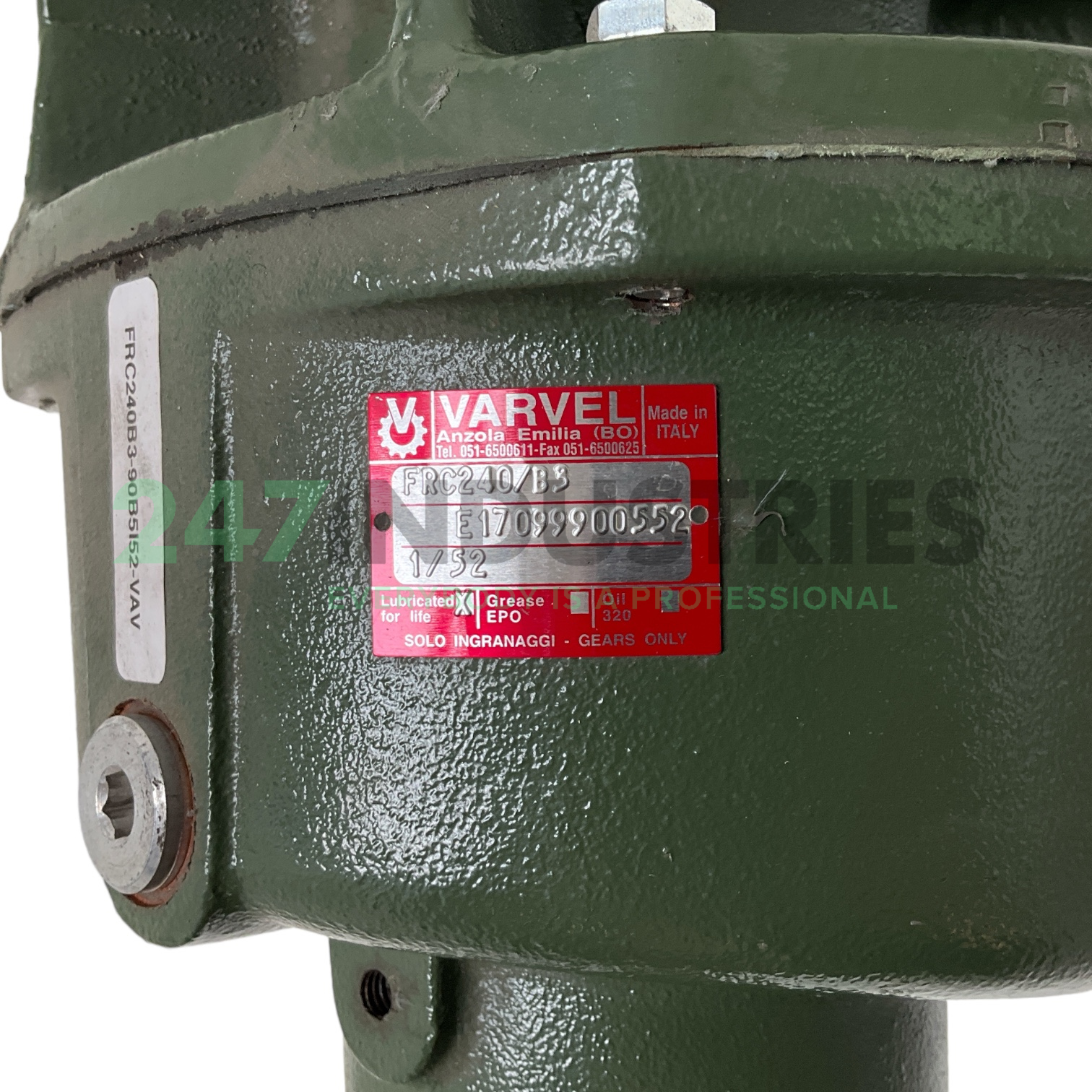

FRC240B3-90B5I52 Varvel

Helical gearunit 90-B5 i=52

Stock
1 pc in stock and ready for shipment
Brand Varvel
Article number FRC240B3-90B5I52 Varvel
Mounting B5 (outer flange)
Product description
Read more Show less
Help with this product

Similar to: FRC240B3-90B5I52 Varvel

Loading similair products

Product specifications

Technical details

  1. Availability 1 pc
  2. Brand Varvel
  3. Item number FRC240B3-90B5I52 Varvel
  4. Category Gearboxes

Weight and Dimensions

  1. Weight (kg) 33.4

Product Properties

  1. Mounting B5 (outer flange)
  2. Gear ratio i = n1/n2 52
  3. IEC Framesize 90

Detailed Product Properties

  1. IEC Framesize 90
  2. Shaft diameter (mm) 24
  3. Shaft height IEC in JDE 090
  4. Shaft length (mm) 50
  5. Shaft key width (mm) 8
  6. Shaft key length (mm) 40
  7. Thread shaft bore M8
  8. Shaft height, B3 mounted (mm) 90
  9. Width foot holes, B3 mounted (mm) 140
  10. Length foot holes, B3 mounted (mm) S=286, M=311
  11. Diameter foot holes (mm) 10
  12. Outer diameter flange B5/V1/B35/V3 (mm) 200
  13. Spigot B5/V1/B35/V3 (mm) 130
  14. Pitch circle diameter B5/V1/B35/V3 (mm) 165
  15. Number of flange holes 4
  16. Diameter flange holes B5/V1/B35/V3 (mm) 12
  17. Pitch circle diameter B14/B34/V18/V19 (mm) 115
  18. Thread flange holes B14/B34/V18/V19 M8
  19. Outer diameter flange B14/B34/V18/V19 (mm) 140
  20. Spigot B14/B34/V18/V19 (mm) 95
Show all details Show less
