HC471A423046060B14 Rossi

196,20 ex VAT
€ 237,40 incl. VAT
€ 237,40 incl. VAT
196,20 ex VAT
Temporarily sold out
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

HC471A423046060B14 Rossi

71-4P 0,25kW NstdV B14 SS

Stock
not in stock
Brand Rossi
Article number HC471A423046060B14 Rossi
Rated power 0.25kW

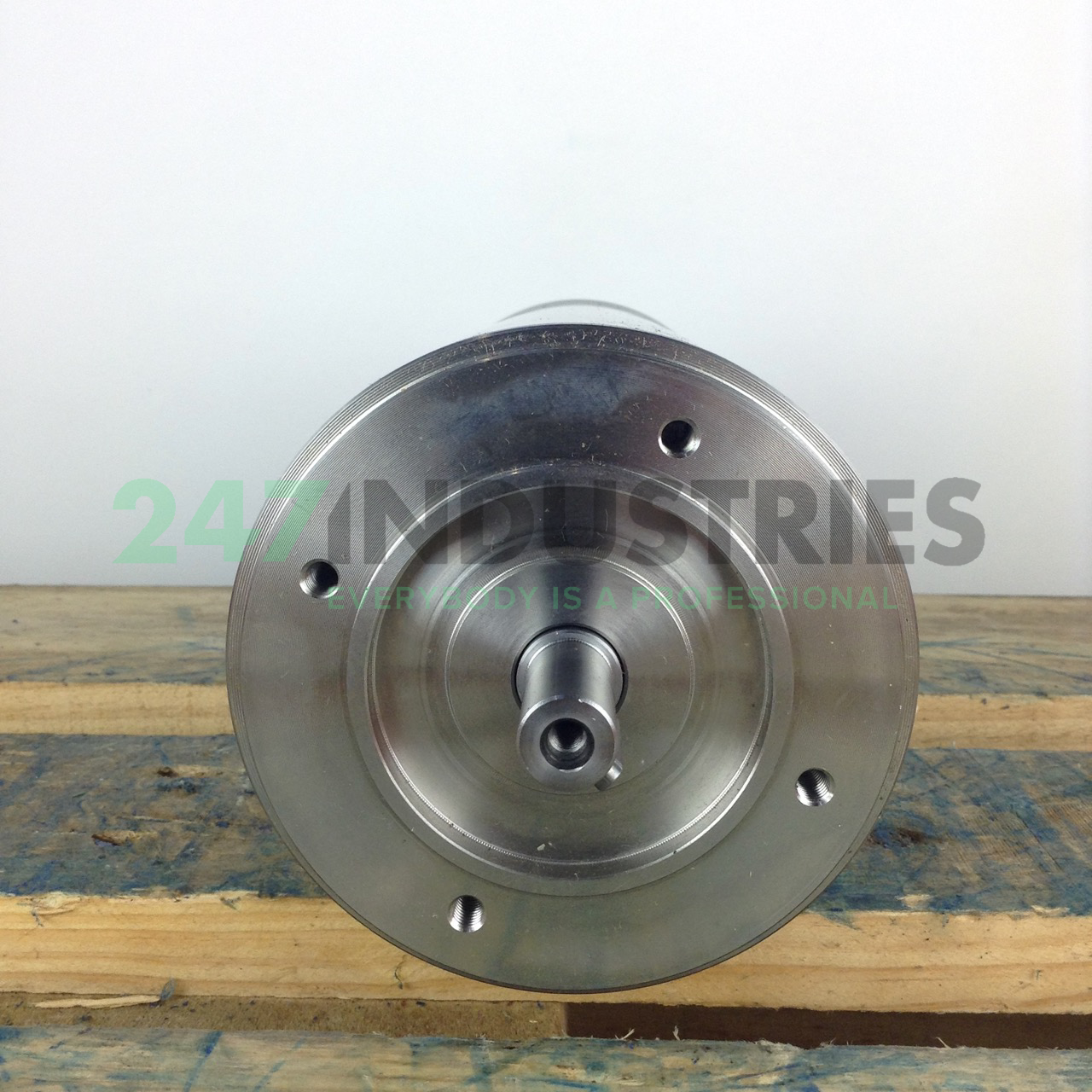

Mounting B14 (inner flange)
Frequency 60 Hz
Speed (RPM) 1500 / 4-Poles
Product description

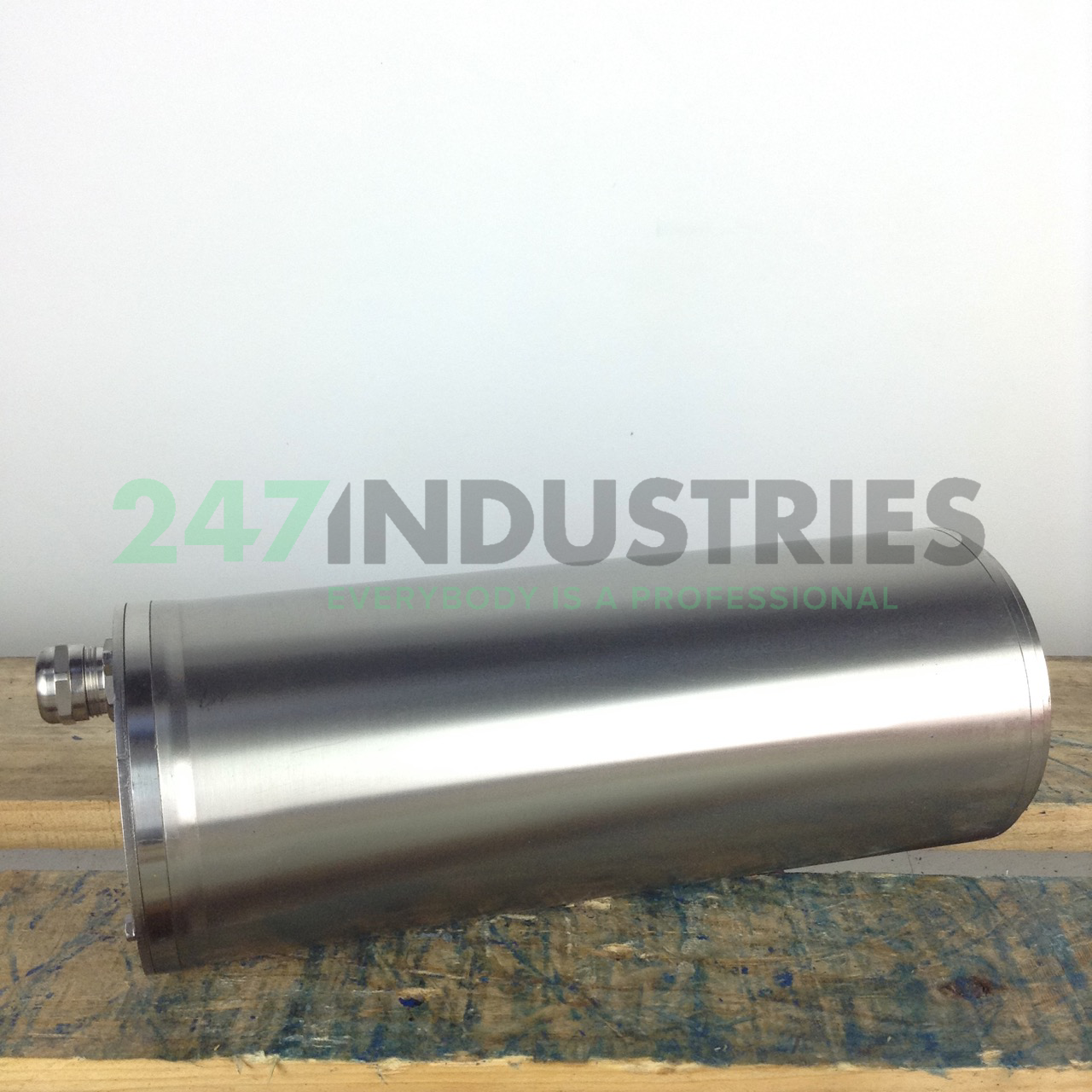

The HC471A423046060B14 Rossi is part of the HyCLEAN range. These extremely solid stainless steel motors are very suitable for use in food, chemical and pharmaceutical industries where moisture resistance and hygiene are of the utmost importance. In these environments motors come into contact with humidity, water jets, chemicals and oil.

The HC4's housing is made of AISI 316 grade stainless steel. An important feature of this material is its excellent corrosion resistance. In addition, the interior is able to withstand rough conditions as well. The rotor has an anti-corrosion coating and the windings are encased in an extra hard two-component resin.

This HyCLEAN motor lives up to its name as it is very easy to clean thanks to a highly streamlined design. The scratch-resistant design of the HC471A423046060B14 with IP68 rating makes sanitisation a breeze. Dirt doesn't get a chance to adhere to the smooth surface and the lack of a fan and cooling fins prevents the spread of bacteria.

Rossi is a renowned Italian company which pays a lot of attention to technical innovations and where quality and reliability are held in high regard. In addition, within its wide range of products there is always a tailor-made solution to be found. Rossi products are used in a wide selection of diverse industries including the metal, gas and oil industry and offshore marine applications.
Read more Show less
Help with this product

Similar to: HC471A423046060B14 Rossi

Loading similair products

Product specifications

Technical details

  1. Availability 0 pcs
  2. Brand Rossi
  3. Item number HC471A423046060B14 Rossi
  4. Category Stainless Steel Motors

Weight and Dimensions

  1. Weight (kg) 12.8

Product Properties

  1. Rated power (kW) 0.25
  2. Speed at 50Hz (rpm) 1500 / 4-Poles
  3. Frequency 60 Hz
  4. Energy efficiency Not applicable
  5. Mounting B14 (inner flange)
  6. Brake No Brake
  7. IP Class IP68
  8. Explosion safety (Atex) No protection
  9. IEC Framesize 71

Detailed Product Properties

  1. Voltage All other voltages
  2. IEC Framesize 71
  3. Shaft diameter (mm) 14
  4. Housing material Stainless steel
  5. AC/DC AC
  6. Standard IEC
  7. Shaft height IEC in JDE 071
  8. Shaft length (mm) 30
  9. Shaft key width (mm) 5
  10. Shaft key length (mm) 22
  11. Thread shaft bore M5
  12. Shaft height, B3 mounted (mm) 71
  13. Width foot holes, B3 mounted (mm) 112
  14. Length foot holes, B3 mounted (mm) 90
  15. Diameter foot holes (mm) 7
  16. Outer diameter flange B5/V1/B35/V3 (mm) 160
  17. Spigot B5/V1/B35/V3 (mm) 110
  18. Pitch circle diameter B5/V1/B35/V3 (mm) 130
  19. Number of flange holes 4
  20. Diameter flange holes B5/V1/B35/V3 (mm) 10
  21. Pitch circle diameter B14/B34/V18/V19 (mm) 85
  22. Thread flange holes B14/B34/V18/V19 M6
  23. Outer diameter flange B14/B34/V18/V19 (mm) 105
  24. Spigot B14/B34/V18/V19 (mm) 70
Show all details Show less
