HF63A423046060B5 Rossi

63-4P 0,14kW NstdV B5 AL

Stock
not in stock
Brand Rossi
Article number HF63A423046060B5 Rossi
Rated power 0.14kW
Mounting B5 (outer flange)
Frequency 60 Hz
Speed (RPM) 1500 / 4-Poles
Product description
Read more Show less
Help with this product

Similar to: HF63A423046060B5 Rossi

Loading similair products

Product specifications

Technical details

  1. Availability 0 pcs
  2. Brand Rossi
  3. Item number HF63A423046060B5 Rossi
  4. Category 3-Phase Motors

Weight and Dimensions

  1. Weight (kg) 12.1

Product Properties

  1. Rated power (kW) 0.14
  2. Speed at 50Hz (rpm) 1500 / 4-Poles
  3. Frequency 60 Hz
  4. Energy efficiency Not applicable
  5. Mounting B5 (outer flange)
  6. Brake No Brake
  7. IP Class IP55
  8. Explosion safety (Atex) No protection
  9. IEC Framesize 63

Detailed Product Properties

  1. Voltage All other voltages
  2. IEC Framesize 63
  3. Shaft diameter (mm) 11
  4. Housing material Alu
  5. AC/DC AC
  6. Standard IEC
  7. Shaft height IEC in JDE 063
  8. Shaft length (mm) 23
  9. Shaft key width (mm) 4
  10. Shaft key length (mm) 16
  11. Thread shaft bore M4
  12. Shaft height, B3 mounted (mm) 63
  13. Width foot holes, B3 mounted (mm) 100
  14. Length foot holes, B3 mounted (mm) 80
  15. Diameter foot holes (mm) 7

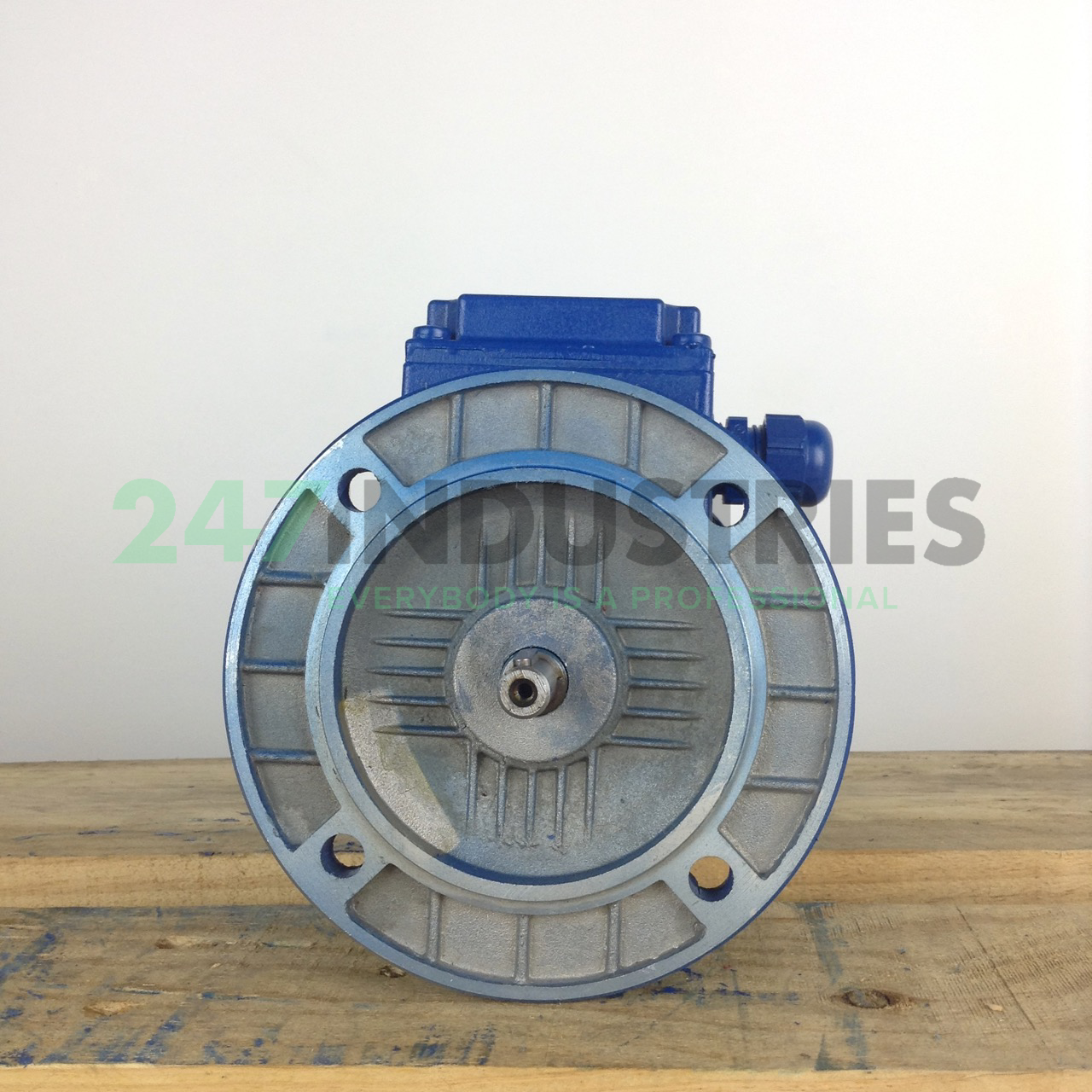

  16. Outer diameter flange B5/V1/B35/V3 (mm) 140
  17. Spigot B5/V1/B35/V3 (mm) 95
  18. Pitch circle diameter B5/V1/B35/V3 (mm) 115
  19. Number of flange holes 4
  20. Diameter flange holes B5/V1/B35/V3 (mm) 10
  21. Pitch circle diameter B14/B34/V18/V19 (mm) 75
  22. Thread flange holes B14/B34/V18/V19 M5
  23. Outer diameter flange B14/B34/V18/V19 (mm) 90
  24. Spigot B14/B34/V18/V19 (mm) 60
