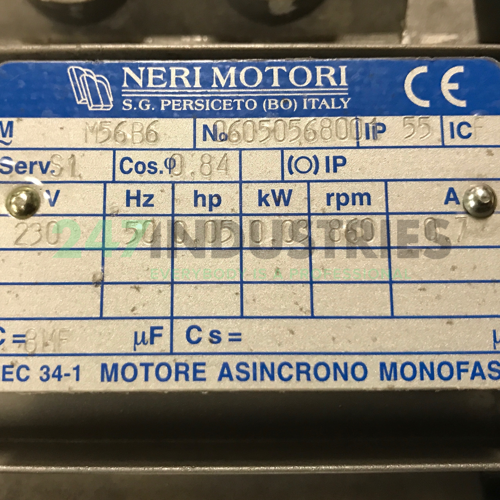

M56B6B34 Neri Motori

Technical details

1. Availability 0 pcs
2. Brand Neri Motori
3. Item number M56B6B34 Neri Motori
4. Category 1-Phase Motors

Weight and Dimensions

1. Weight (kg) 3.1

Product Properties

1. Rated power (kW) 0.03
2. Speed at 50Hz (rpm) 1000 / 6-Poles
3. Frequency 50 Hz
4. Energy efficiency Not applicable
5. Mounting B34 (foot + inner flange)
6. Brake No Brake
7. IP Class IP55
8. Explosion safety (Atex) No protection
9. IEC Framesize 56

Detailed Product Properties

1. Shaft diameter (inch) 0.625
2. Housing material Alu
3. AC/DC AC
4. NEMA framesize 56
5. Standard IEC
6. Shaft height NEMA in JDE 056
7. Shaft length (inch) 1.875
8. Shaft height, B3 mounted (inch) 3.5
9. Width foot holes, B3 mounted (inch) 4.875
10. Length foot holes, B3 mounted (inch) 3
11. Diameter foot holes (inch) 0.3438
12. Pitch flange holes C-face (inch) 5.875
13. Outer diameter flange C-face (inch) 6.5
14. Spigot C-face (inch) 4.5
