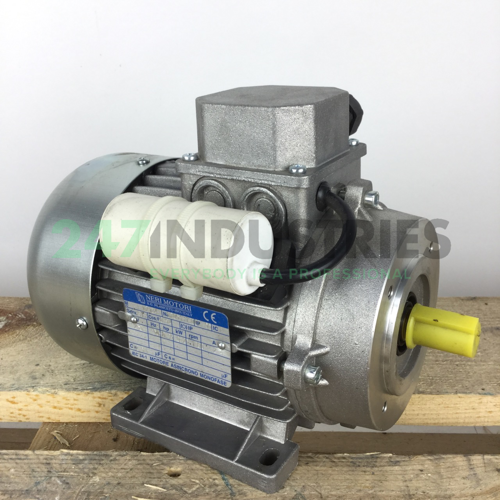

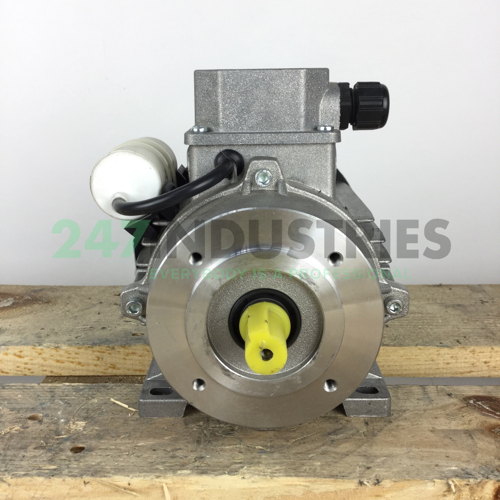

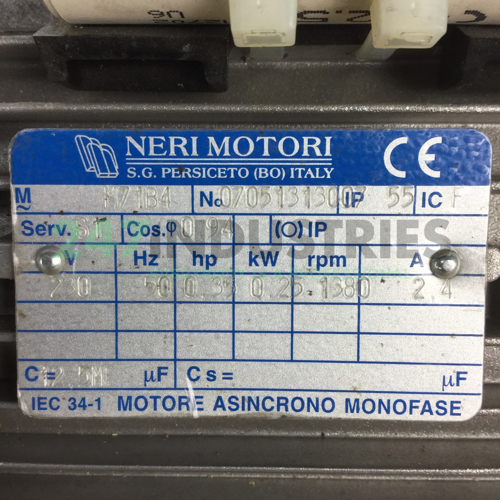

M71B4B34 Neri Motori

Technical details

1. Availability 0 pcs
2. Brand Neri Motori
3. Item number M71B4B34 Neri Motori
4. Category 1-Phase Motors

Weight and Dimensions

1. Weight (kg) 6

Product Properties

1. Rated power (kW) 0.25
2. Speed at 50Hz (rpm) 1500 / 4-Poles
3. Frequency 50 Hz
4. Energy efficiency Not applicable
5. Mounting B34 (foot + inner flange)
6. Brake No Brake
7. IP Class IP55
8. Explosion safety (Atex) No protection
9. IEC Framesize 71

Detailed Product Properties

1. IEC Framesize 71
2. Shaft diameter (mm) 14
3. Housing material Alu
4. AC/DC AC
5. Standard IEC
6. Shaft height IEC in JDE 071
7. Shaft length (mm) 30
8. Shaft key width (mm) 5
9. Shaft key length (mm) 22
10. Thread shaft bore M5
11. Shaft height, B3 mounted (mm) 71
12. Width foot holes, B3 mounted (mm) 112
13. Length foot holes, B3 mounted (mm) 90
14. Diameter foot holes (mm) 7
15. Outer diameter flange B5/V1/B35/V3 (mm) 160
16. Spigot B5/V1/B35/V3 (mm) 110
17. Pitch circle diameter B5/V1/B35/V3 (mm) 130
18. Number of flange holes 4
19. Diameter flange holes B5/V1/B35/V3 (mm) 10
20. Pitch circle diameter B14/B34/V18/V19 (mm) 85
21. Thread flange holes B14/B34/V18/V19 M6
22. Outer diameter flange B14/B34/V18/V19 (mm) 105
23. Spigot B14/B34/V18/V19 (mm) 70
