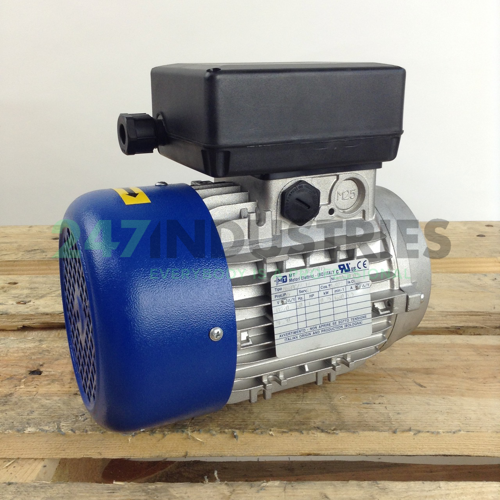

MN80C/4-B14 MT Motori Elettrici

Technical details

1. Availability 0 pcs
2. Brand MT Motori Elettrici
3. Item number MN80C/4-B14 MT Motori Elettrici
4. Category 1-Phase Motors

Weight and Dimensions

1. Weight (kg) 11

Product Properties

1. Rated power (kW) 0.75
2. Speed at 50Hz (rpm) 1500 / 4-Poles
3. Frequency 60 Hz
4. Energy efficiency IE1 = standard = EFF2

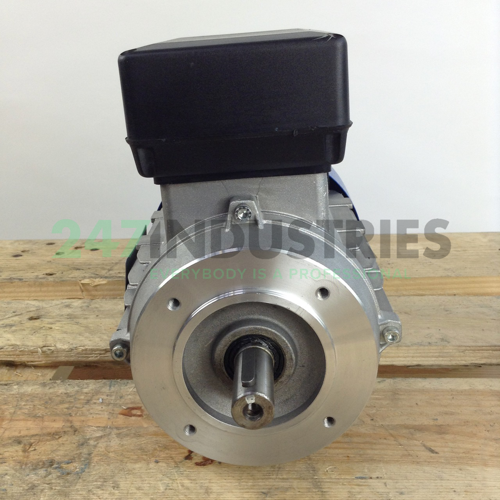

5. Mounting B14 (inner flange)
6. Brake No Brake
7. IP Class IP55
8. Explosion safety (Atex) No protection
9. IEC Framesize 80

Detailed Product Properties

1. IEC Framesize 80
2. Shaft diameter (mm) 19
3. Housing material Alu
4. AC/DC AC
5. Standard IEC
6. Shaft height IEC in JDE 080
7. Shaft length (mm) 40
8. Shaft key width (mm) 6
9. Shaft key length (mm) 32
10. Thread shaft bore M6
11. Shaft height, B3 mounted (mm) 80
12. Width foot holes, B3 mounted (mm) 125
13. Length foot holes, B3 mounted (mm) 100
14. Diameter foot holes (mm) 9.5
15. Outer diameter flange B5/V1/B35/V3 (mm) 200
16. Spigot B5/V1/B35/V3 (mm) 130
17. Pitch circle diameter B5/V1/B35/V3 (mm) 165
18. Number of flange holes 4
19. Diameter flange holes B5/V1/B35/V3 (mm) 12
20. Pitch circle diameter B14/B34/V18/V19 (mm) 100
21. Thread flange holes B14/B34/V18/V19 M6
22. Outer diameter flange B14/B34/V18/V19 (mm) 120
23. Spigot B14/B34/V18/V19 (mm) 80
