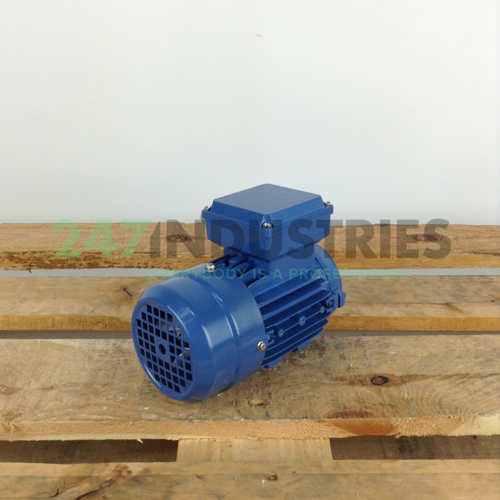

MS6314B14 Gibbons

Technical details

1. Availability 0 pcs
2. Brand Gibbons
3. Item number MS6314B14 Gibbons
4. Category 1-Phase Motors

Weight and Dimensions

1. Weight (kg) 4.44

Product Properties

1. Rated power (kW) 0.12
2. Speed at 50Hz (rpm) 1500 / 4-Poles
3. Frequency 50 Hz
4. Energy efficiency Not applicable

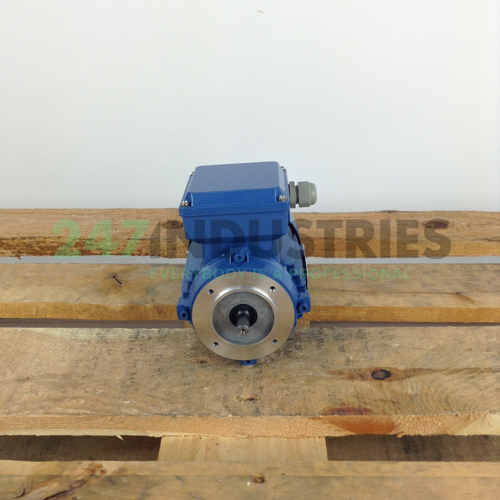

5. Mounting B14 (inner flange)
6. Brake No Brake
7. IP Class IP55
8. Explosion safety (Atex) No protection
9. IEC Framesize 63

Detailed Product Properties

1. IEC Framesize 63
2. Shaft diameter (mm) 11
3. Housing material Alu
4. AC/DC AC
5. Standard IEC
6. Shaft height IEC in JDE 063
7. Shaft length (mm) 23
8. Shaft key width (mm) 4
9. Shaft key length (mm) 16
10. Thread shaft bore M4
11. Shaft height, B3 mounted (mm) 63
12. Width foot holes, B3 mounted (mm) 100
13. Length foot holes, B3 mounted (mm) 80
14. Diameter foot holes (mm) 7
15. Outer diameter flange B5/V1/B35/V3 (mm) 140
16. Spigot B5/V1/B35/V3 (mm) 95
17. Pitch circle diameter B5/V1/B35/V3 (mm) 115
18. Number of flange holes 4
19. Diameter flange holes B5/V1/B35/V3 (mm) 10
20. Pitch circle diameter B14/B34/V18/V19 (mm) 75
21. Thread flange holes B14/B34/V18/V19 M5
22. Outer diameter flange B14/B34/V18/V19 (mm) 90
23. Spigot B14/B34/V18/V19 (mm) 60
