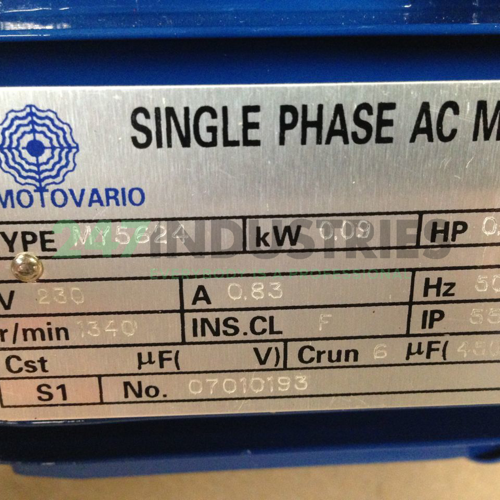

MY5624B14 Motovario

Technical details

1. Availability 5 pcs
2. Brand Motovario
3. Item number MY5624B14 Motovario
4. Category 1-Phase Motors

Weight and Dimensions

1. Weight (kg) 3.3

Product Properties

1. Rated power (kW) 0.09
2. Speed at 50Hz (rpm) 1500 / 4-Poles
3. Frequency 50/60 Hz
4. Energy efficiency Not applicable
5. Mounting B14 (inner flange)
6. Brake No Brake
7. IP Class IP55
8. Explosion safety (Atex) No protection
9. IEC Framesize 56

Detailed Product Properties

1. Shaft diameter (inch) 0.625
2. Housing material Alu
3. AC/DC AC
4. NEMA framesize 56
5. Standard IEC
6. Shaft height NEMA in JDE 056
7. Shaft length (inch) 1.875
8. Shaft height, B3 mounted (inch) 3.5
9. Width foot holes, B3 mounted (inch) 4.875
10. Length foot holes, B3 mounted (inch) 3
11. Diameter foot holes (inch) 0.3438
12. Pitch flange holes C-face (inch) 5.875
13. Outer diameter flange C-face (inch) 6.5
14. Spigot C-face (inch) 4.5
