P511A-N05GN-FB3-B5I5 Hydro-Mec

€ 247,93 ex VAT
€ 300,00 incl. VAT
€ 300,00 incl. VAT
€ 247,93 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

P511A-N05GN-FB3-B5I5 Hydro-Mec

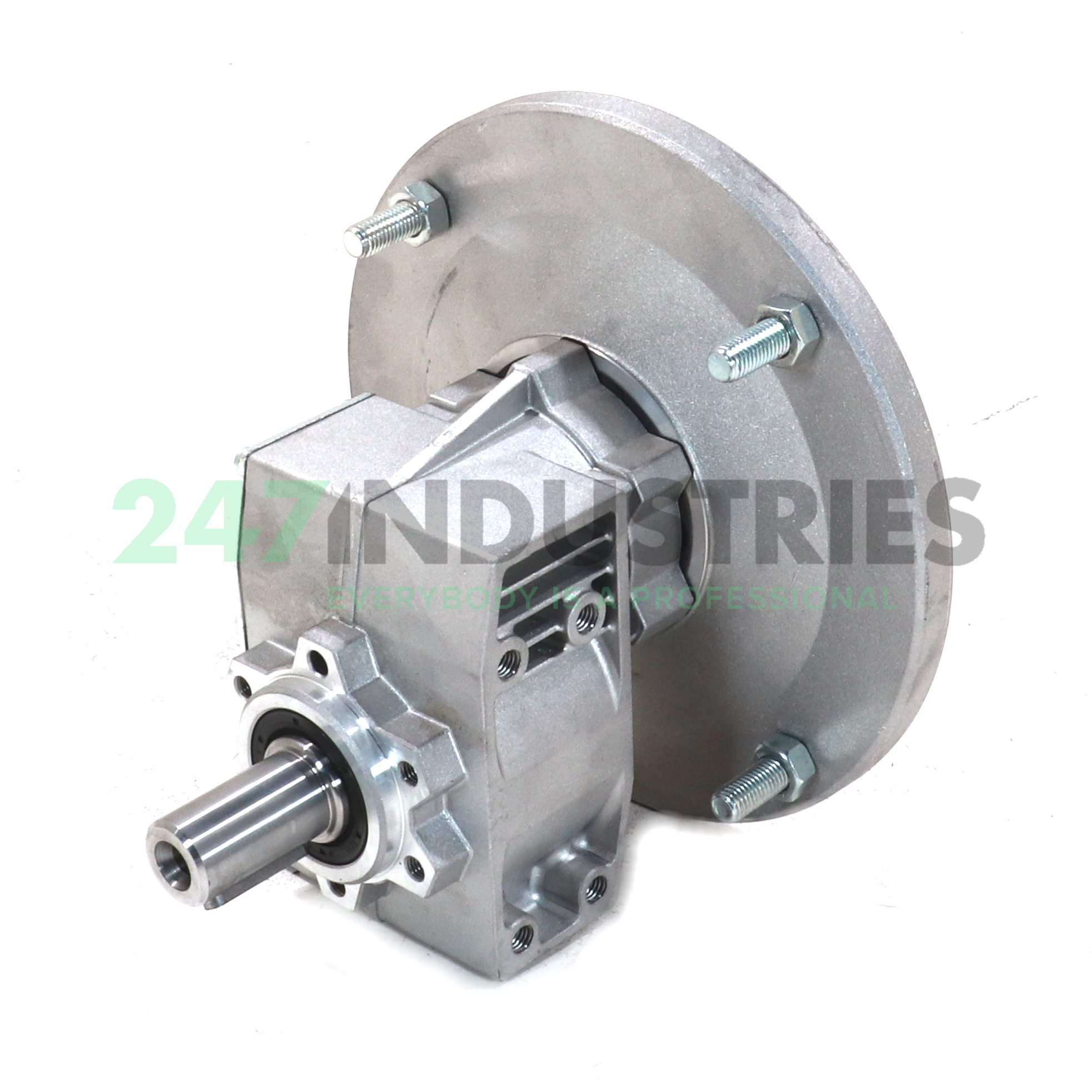

Shaft-mounted gear 100-B5 i=5

Stock
1 pc in stock and ready for shipment
Brand Hydro-Mec
Article number P511A-N05GN-FB3-B5I5 Hydro-Mec

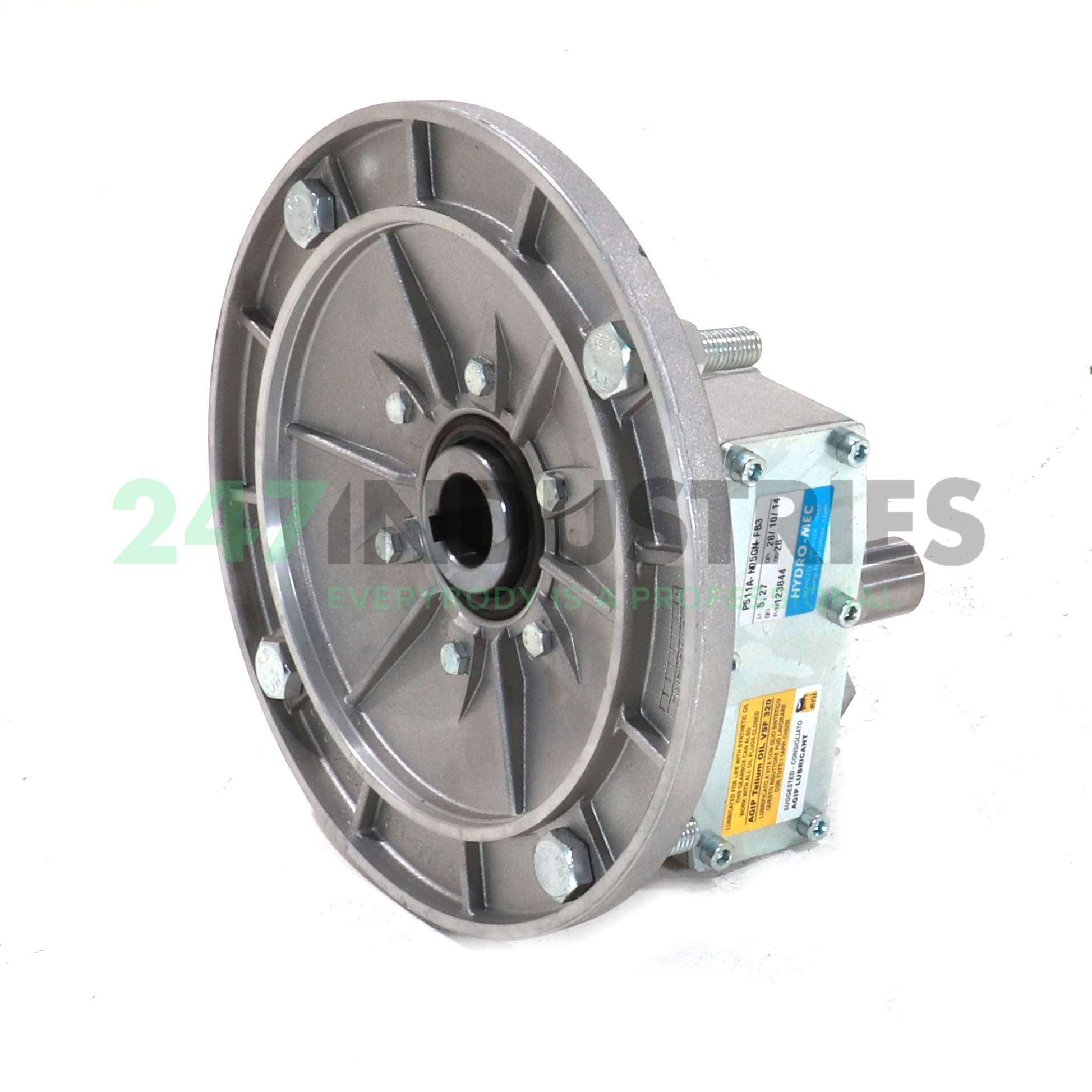

Mounting B5 (outer flange)
Product description
Read more Show less
Help with this product

Similar to: P511A-N05GN-FB3-B5I5 Hydro-Mec

Loading similair products

Product specifications

Technical details

  1. Availability 1 pc
  2. Brand Hydro-Mec
  3. Item number P511A-N05GN-FB3-B5I5 Hydro-Mec
  4. Category Gearboxes

Weight and Dimensions

  1. Weight (kg) 5.7

Product Properties

  1. Mounting B5 (outer flange)
  2. Gear ratio i = n1/n2 5
  3. IEC Framesize 100

Detailed Product Properties

  1. IEC Framesize 100
  2. Shaft diameter (mm) 28
  3. Shaft height IEC in JDE 100
  4. Shaft length (mm) 60
  5. Shaft key width (mm) 8
  6. Shaft key length (mm) 50
  7. Thread shaft bore M10
  8. Shaft height, B3 mounted (mm) 100
  9. Width foot holes, B3 mounted (mm) 160
  10. Length foot holes, B3 mounted (mm) S=286, M=311
  11. Diameter foot holes (mm) 12
  12. Outer diameter flange B5/V1/B35/V3 (mm) 250
  13. Spigot B5/V1/B35/V3 (mm) 180
  14. Pitch circle diameter B5/V1/B35/V3 (mm) 215
  15. Number of flange holes 4
  16. Diameter flange holes B5/V1/B35/V3 (mm) 14.5
  17. Pitch circle diameter B14/B34/V18/V19 (mm) 130
  18. Thread flange holes B14/B34/V18/V19 M8
  19. Outer diameter flange B14/B34/V18/V19 (mm) 160
  20. Spigot B14/B34/V18/V19 (mm) 110
Show all details Show less
