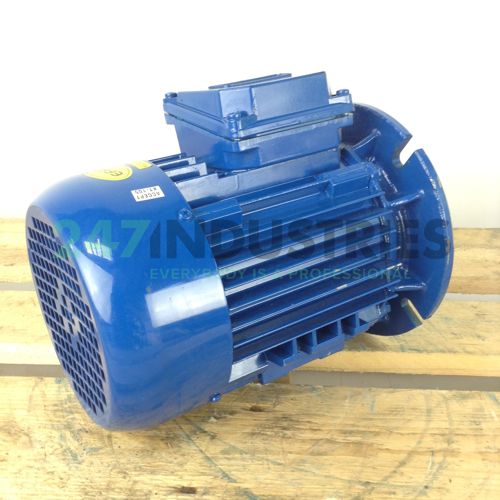

SKH90S-2 Cantoni & C.

Technical details

1. Availability 0 pcs
2. Brand Cantoni & C.
3. Item number SKH90S-2 Cantoni & C.
4. Category 3-Phase Motors

Weight and Dimensions

1. Weight (kg) 13.9

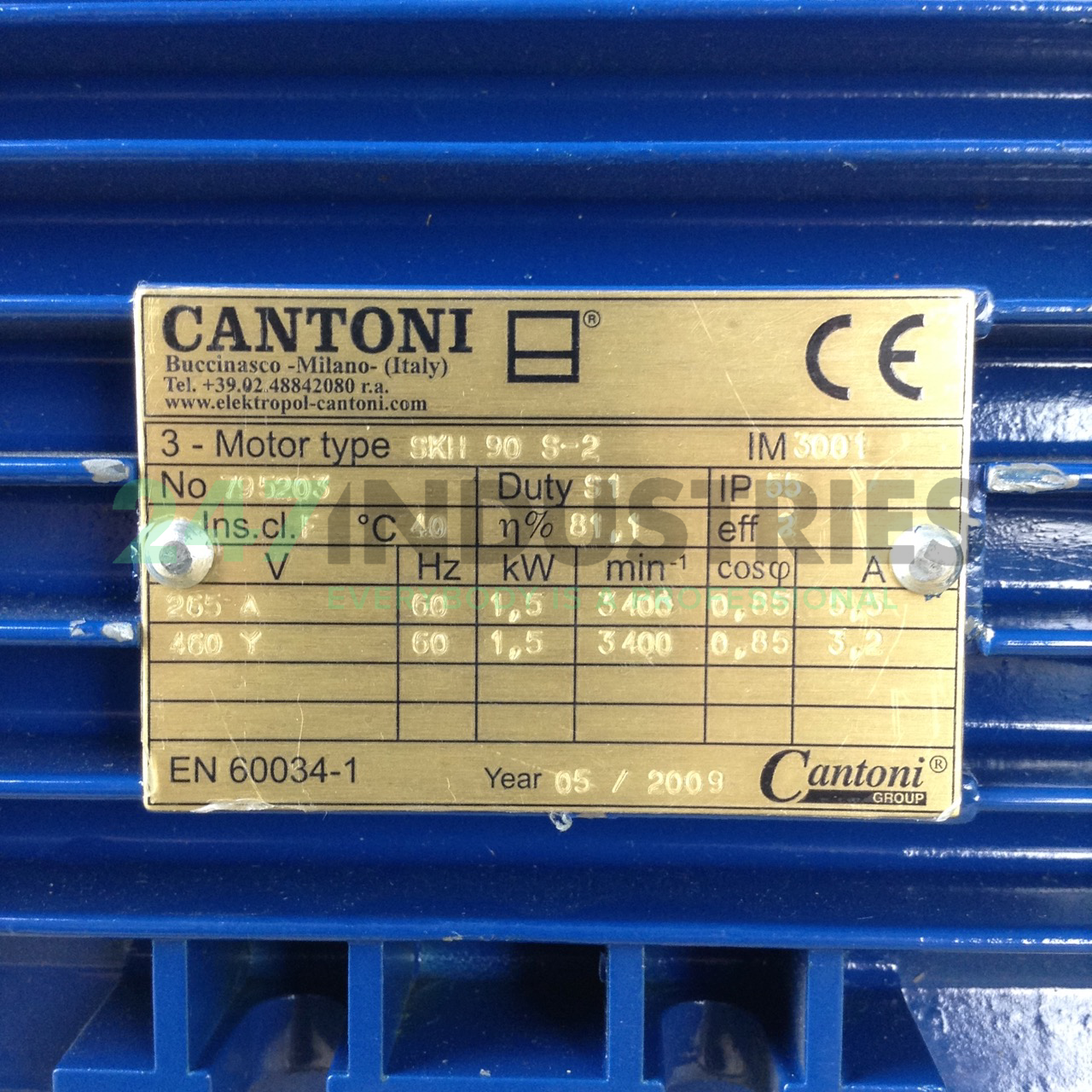

Product Properties

1. Rated power (kW) 1.5
2. Speed at 50Hz (rpm) 3000 / 2-Poles
3. Frequency 60 Hz
4. Energy efficiency IE1 = standard = EFF2
5. Mounting B5 (outer flange)
6. Brake No Brake
7. IP Class IP55
8. Explosion safety (Atex) No protection
9. IEC Framesize 90

Detailed Product Properties

1. Voltage All other voltages
2. IEC Framesize 90
3. Shaft diameter (mm) 24
4. Housing material Alu
5. AC/DC AC
6. Standard IEC
7. Shaft height IEC in JDE 090
8. Shaft length (mm) 50
9. Shaft key width (mm) 8
10. Shaft key length (mm) 40
11. Thread shaft bore M8
12. Shaft height, B3 mounted (mm) 90
13. Width foot holes, B3 mounted (mm) 140
14. Length foot holes, B3 mounted (mm) S=286, M=311
15. Diameter foot holes (mm) 10

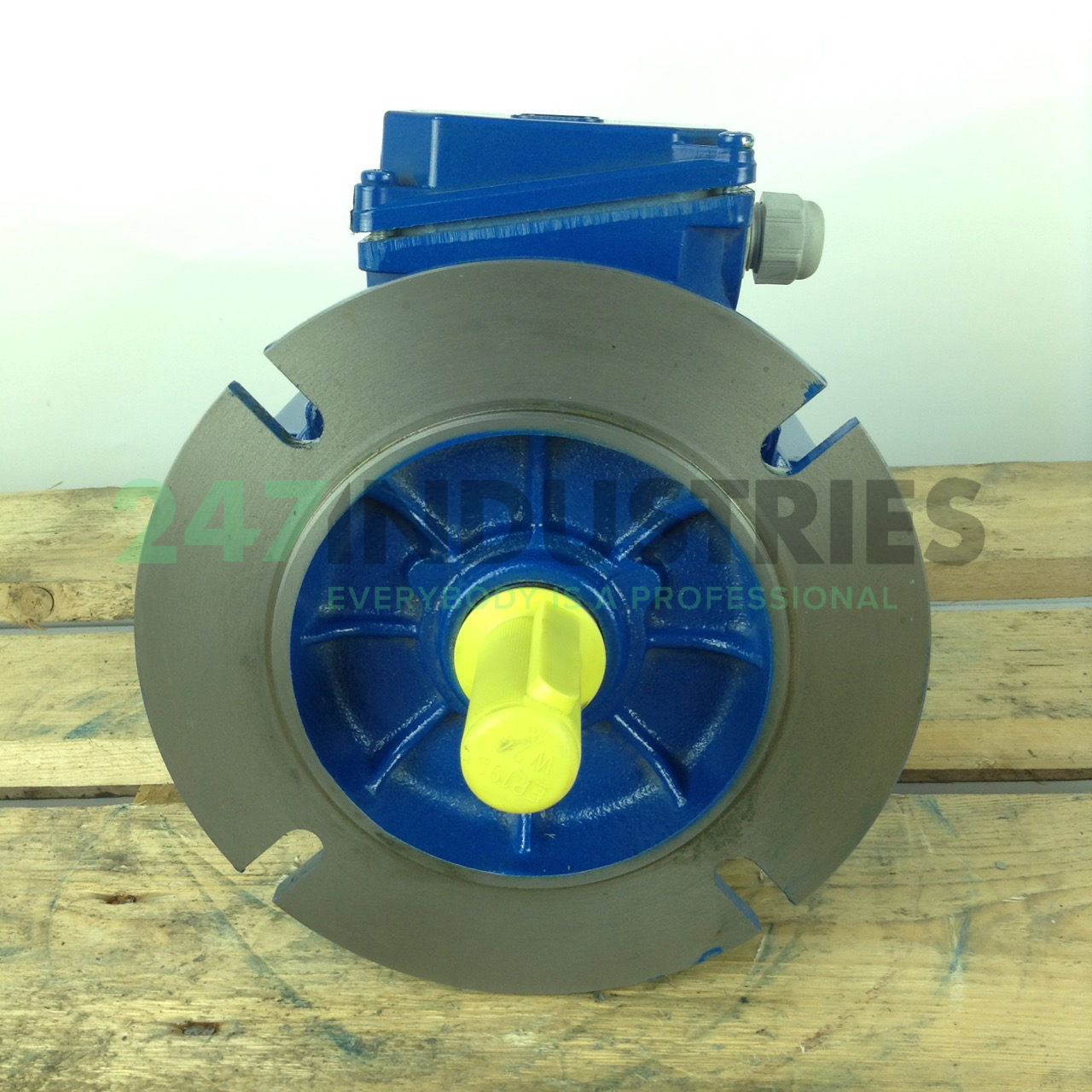

16. Outer diameter flange B5/V1/B35/V3 (mm) 200
17. Spigot B5/V1/B35/V3 (mm) 130
18. Pitch circle diameter B5/V1/B35/V3 (mm) 165
19. Number of flange holes 4
20. Diameter flange holes B5/V1/B35/V3 (mm) 12
21. Pitch circle diameter B14/B34/V18/V19 (mm) 115
22. Thread flange holes B14/B34/V18/V19 M8
23. Outer diameter flange B14/B34/V18/V19 (mm) 140
24. Spigot B14/B34/V18/V19 (mm) 95
