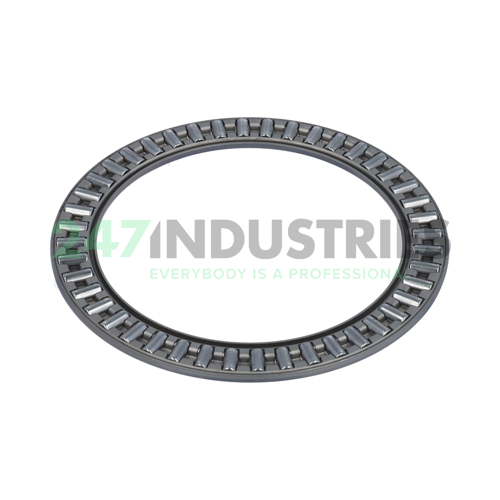

AXK80105-A/0-10 INA

Afmetingen

1. Binnenmaat (d) mm 80
2. Buitenmaat (D) mm 105
3. Breedte (B) mm 4
4. Binnenmaat (d) inch 3.1496
5. Buitenmaat (D) inch 4.1339
6. Breedte (B) inch 0.1575
7. Buitendiameter (D c) mm 105
8. Diameter rolelement (D W) mm 4
9. Afmeting loopvlak (E a) mm 103
10. Loopvlakafmeting (E b) mm 84

Suffix-omschrijving

1. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
2. /0-10 Micron - Needle Sort

Technische specificaties

1. Beschikbaarheid 50 stuks
2. Merk INA
3. Item number AXK80105-A/0-10 INA
4. Also known as 0000357269065

5. EAN 4012802368284
6. Category Naaldtaatslager

Gewicht en afmetingen

1. Gewicht (kg) 0.063

Data van Schaeffler (medias)

1. Axial Static Load Rating C0a (N) 280000
2. Axial Dynamic Load Rating Ca (N) 57000
3. Grenstoerental (n G) 3100
4. Referentiesnelheid (n ϑr) 1280
5. ECLASS number 23-05-11-90
6. ECLASS2 number 23-05-11-90
7. Medias omschrijving Axial needle roller and cage assemblies, single direction, to DIN 5405-2
