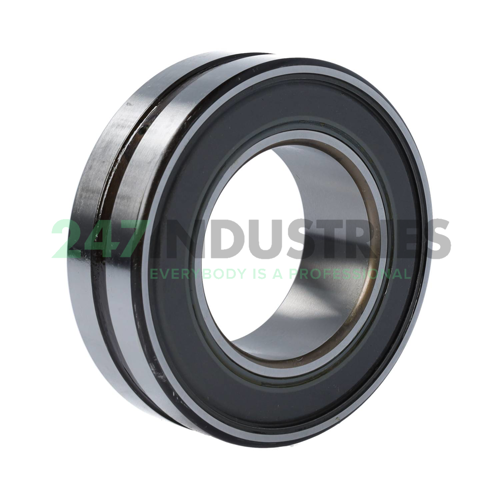

BS2-2211-2CS2/C4GEM9 SKF

Afmetingen

1. Binnenmaat (d) mm 55
2. Buitenmaat (D) mm 100
3. Breedte (B) mm 31
4. Binnenmaat (d) inch 2.1654
5. Buitenmaat (D) inch 3.937
6. Breedte (B) inch 1.2205

Suffix-omschrijving

1. 2CS2 Sheet Steel Reinforced Rubbing Seals Of Fluoro Rubber (FPM) At Both Sides Of The Bearing. Grease Fill 70 To 100% With A Plyurea High Temperature Grease. Annular Groove And Three Lubricating Holes In The Outer Ring
2. C4 Bearing Internal Clearance Greater Than C3
3. GEM9 Grease Filling. A Second Letter Indicates The Temperature Range Of The Grease And A Third Letter Identifies The Actual Grease, A Figure Following The Three-Letter Grease Code Indicates That The Filling Degree Deviates From The Standard: 1, 2 And 3 Indicate Smaller Than Standard, 4 to 9 A Larger Fill - Second Letter
4. E Extreme Pressure Grease. - Third Letter
5. M Medium Temperature Grease, e.g. -30 ~ 110°C
6. 9 Largest Fill

Technische specificaties

1. Beschikbaarheid 2 stuks
2. Merk SKF
3. Item number BS2-2211-2CS2/C4GEM9 SKF
4. Category Tweerijig tonlager

Gewicht en afmetingen

1. Gewicht (kg) 1

Producteigenschappen

1. Boring C - cilindrische boring
2. Smeergroef en smeergaten W33 - smeergroef en 3 -boringen
3. Afdichting 2RS2 - Fluoro Rubber Seals / High Temperature
4. Type kooi S - stalen of standaard kooi
5. Interne radiale speling C4 interne speling (hoger dan C3)
6. Precisie Standaardprecisie
7. Warmtestabilisatie Geen warmtestabilisatie - temperaturen tot 120 °C
8. Schudzeefuitvoering Uitvoering zonder trilzeef
