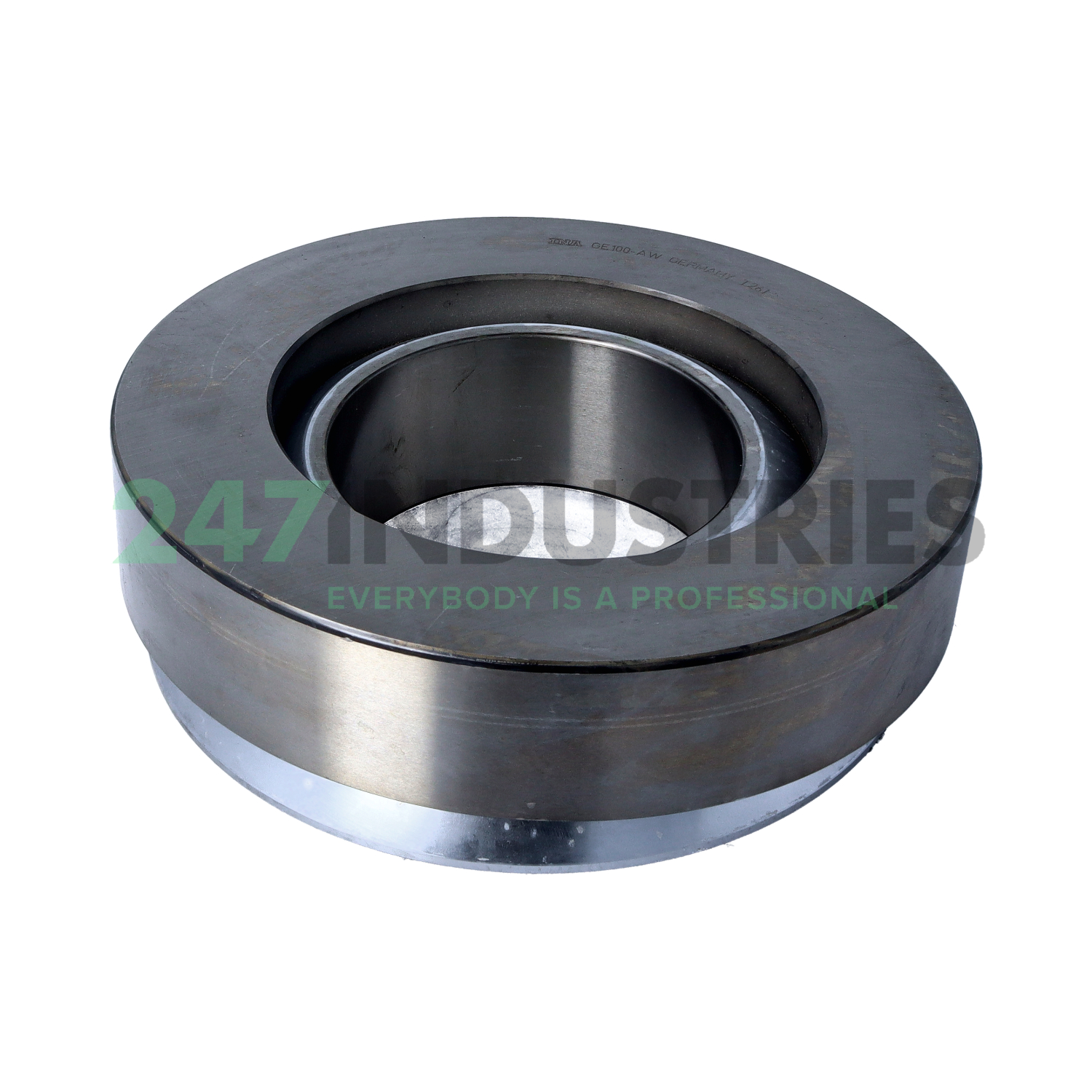

GE100-AW-A INA

Afmetingen

1. Binnenmaat (d) mm 100
2. Buitenmaat (D) mm 210
3. Breedte (B) mm 59
4. Binnenmaat (d) inch 3.937
5. Buitenmaat (D) inch 8.2677
6. Breedte (B) inch 2.3228
7. Buitendiameter lager (D) mm 210
8. Hoogte (T) mm 59
9. Breedte binnenring (B) mm 50

Suffix-omschrijving

1. AW Sliding Contact Surface Hard Chromium/Elgoglide® (Elgoglide®=PTFE (Polyetrafluoroethylene))
2. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Technische specificaties

1. Beschikbaarheid 3 stuks
2. Merk INA
3. Item number GE100-AW-A INA
4. Also known as 0066520340000
   GX100F

5. EAN 4012802532838
6. Category Kogelgewrichtslager

Gewicht en afmetingen

1. Gewicht (kg) 11

Producteigenschappen

1. Afdichting Geen afdichting
2. Contactmateriaal Staal op PTFE

Data van Schaeffler (medias)

1. Axial Static Load Rating C0a (N) 6020000
2. Axial Dynamic Load Rating Ca (N) 3610000
3. ECLASS number 23-05-01-06
4. ECLASS2 number 23-05-01-06
5. Medias omschrijving Axial spherical plain bearing, maintenance-free, DIN ISO 12240-3, shaft location washer curved surface with hard chromium coating, open design
