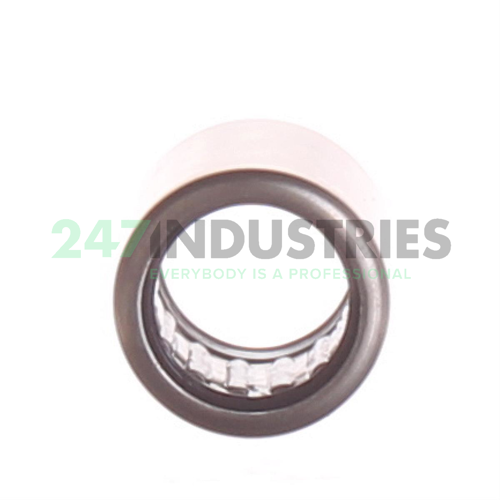

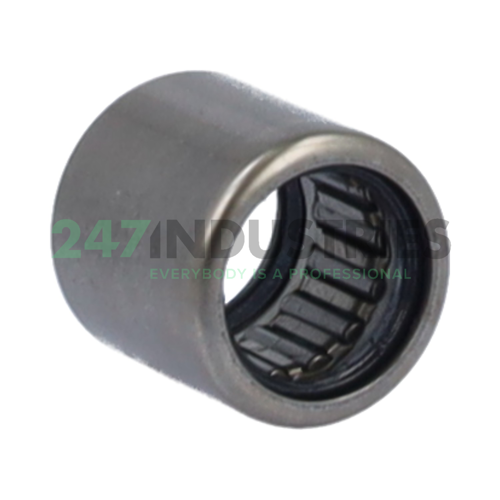

HK1014-2RS-FPM-B-L271 INA

Afmetingen

1. Binnenmaat (d) mm 10
2. Buitenmaat (D) mm 14
3. Breedte (B) mm 14
4. Binnenmaat (d) inch 0.3937
5. Buitenmaat (D) inch 0.5512
6. Breedte (B) inch 0.5512
7. Diameter onderrol (F w) mm 10

Suffix-omschrijving

1. 2RS Lip Seals On Both Sides
2. FPM Fluorcarbon (Viton®) - Seal Of Series G, Made From Fluoro Rubber
3. B The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
4. L271 Anti Wear Protection Grease

Technische specificaties

1. Beschikbaarheid 950 stuks
2. Merk INA
3. Item number HK1014-2RS-FPM-B-L271 INA
4. Also known as 0000532950968
   HK1014 2RS
   HK1014.2RS

5. EAN 4012802606355
6. Category Naaldlager en toebehoren

Gewicht en afmetingen

1. Gewicht (kg) 0.005

Producteigenschappen

1. Afdichting 2RS - rubberen afdichting aan twee zijden

Data van Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 5100
2. Radial Dynamic Load Rating Cr (N) 4400
3. Basis statische radiale belasting (C 0r) "5100.0000"
4. Grenstoerental (n G) 14600
5. Toerentalgrens voor vet smering (n G Vet) 14600
6. ECLASS number 23-05-09-05
7. ECLASS2 number 23-05-09-05
8. Medias omschrijving Drawn cup needle roller bearings with open ends HK..-2RS, lip seals on both sides, to DIN 618
