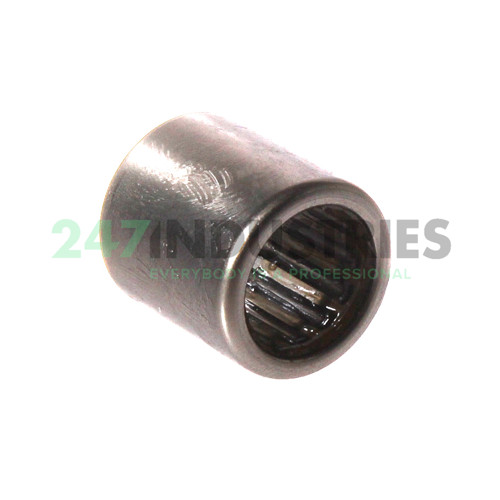

HK1015-B-L271 INA

Afmetingen

1. Binnenmaat (d) mm 10
2. Buitenmaat (D) mm 14
3. Breedte (B) mm 15
4. Binnenmaat (d) inch 0.3937
5. Buitenmaat (D) inch 0.5512
6. Breedte (B) inch 0.5906
7. Diameter onderrol (F w) mm 10
8. Breedte (C) mm 15

Suffix-omschrijving

1. B The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
2. L271 Anti Wear Protection Grease

Technische specificaties

1. Beschikbaarheid 200 stuks
2. Merk INA
3. Item number HK1015-B-L271 INA
4. Also known as 0001834820968

5. EAN 4047643175982
6. Category Naaldlager en toebehoren

Gewicht en afmetingen

1. Gewicht (kg) 0.0053

Producteigenschappen

1. Afdichting Geen afdichting

Data van Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 8800
2. Radial Dynamic Load Rating Cr (N) 6800
3. Basis statische radiale belasting (C 0r) "8800.0000"
4. Grenstoerental (n G) 24300
5. Toerentalgrens voor vet smering (n G Vet) 14600
6. Referentiesnelheid (n ϑr) 18200
7. ECLASS number 23-05-09-05
8. ECLASS2 number 23-05-09-05
9. Medias omschrijving Drawn cup needle roller bearings with open ends HK, to DIN 618/ISO 3245
