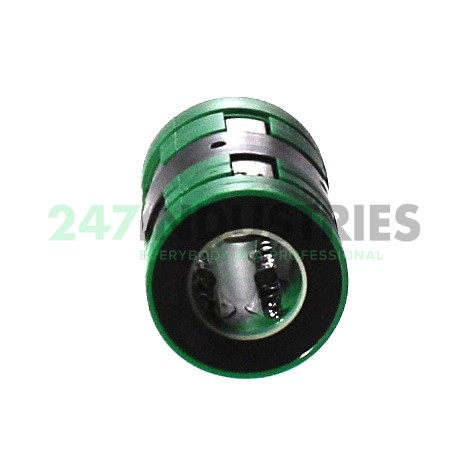

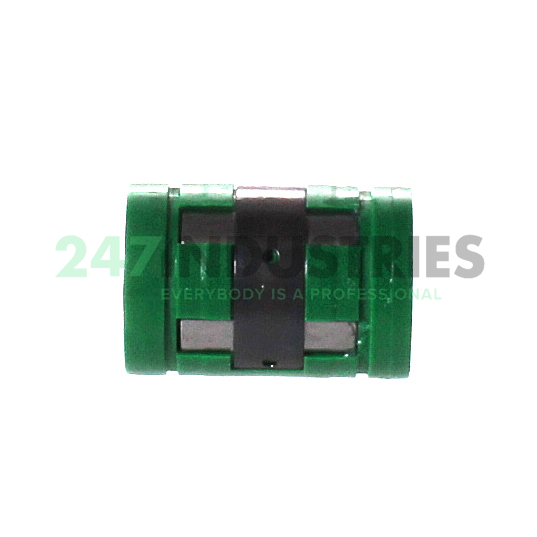

KN12-B-PP INA

Afmetingen

1. Binnenmaat (d) mm 12
2. Buitenmaat (D) mm 22
3. Breedte (B) mm 32
4. Binnenmaat (d) inch 0.4724
5. Buitenmaat (D) inch 0.8661
6. Breedte (B) inch 1.2598
7. Lengte (L) mm 32

Suffix-omschrijving

1. B Guideways And Carriages May Only Be Combined With Each Other Within The Same Accuracy And Interchangeability Class, So A Can Only Be Combined With A, And B Can Only Be Combined With B
2. PP Lip Seal On Both Sides Of Bearing

Technische specificaties

1. Beschikbaarheid 98 stuks
2. Merk INA
3. Item number KN12-B-PP INA
4. Also known as 0244595340000
   KN1232PP
   LBCD12A-2LS
   LMES12UU
   R0670-212-40
   SPM12WW
   TK12UU

5. EAN 4012802284584
6. Category Lineairkogellager

Gewicht en afmetingen

1. Gewicht (kg) 0.015

Producteigenschappen

1. Afdichting 2L - LS-seal at Both Sides

Data van Schaeffler (medias)

1. Dynamische belastbaarheid dyn. (C min) 730
2. Dynamische belastbaarheid stat. (C 0 min) 510
3. Dynamische belastbaarheid stat. (C 0 max) 740
4. ECLASS number 23-30-03-01
5. ECLASS2 number 23-30-03-01
6. Medias omschrijving Linear ball bearings KN..-B-PP, Lightweight range, closed design, sealed on all sides, with relubrication facility, adjustable angle

Downloads en links

1. Link to manufacturer Link to manufacturer
