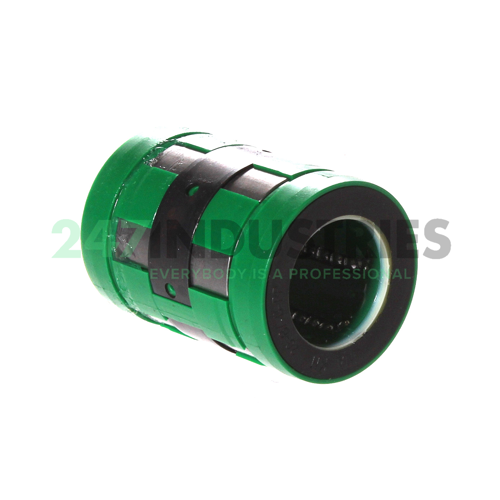

KN20-B-PP INA

Afmetingen

1. Binnenmaat (d) mm 20
2. Buitenmaat (D) mm 32
3. Breedte (B) mm 45
4. Binnenmaat (d) inch 0.7874
5. Buitenmaat (D) inch 1.2598
6. Breedte (B) inch 1.7717
7. Lengte (L) mm 45

Suffix-omschrijving

1. B Guideways And Carriages May Only Be Combined With Each Other Within The Same Accuracy And Interchangeability Class, So A Can Only Be Combined With A, And B Can Only Be Combined With B
2. PP Lip Seal On Both Sides Of Bearing

Technische specificaties

1. Beschikbaarheid 44 stuks
2. Merk INA
3. Item number KN20-B-PP INA
4. Also known as 0193187150000
   KN2045PP
   LBCD20A-2LS
   LMES20UU
   R0670-220-40
   SPM20WW
   TK20UU

5. EAN 4012802422191
6. Category Lineairkogellager

Gewicht en afmetingen

1. Gewicht (kg) 0.042

Producteigenschappen

1. Afdichting 2L - LS-seal at Both Sides

Data van Schaeffler (medias)

1. Dynamische belastbaarheid dyn. (C min) 1730
2. Dynamische belastbaarheid stat. (C 0 min) 1230
3. Dynamische belastbaarheid stat. (C 0 max) 1570
4. ECLASS number 23-30-03-01
5. ECLASS2 number 23-30-03-01
6. Medias omschrijving Linear ball bearings KN..-B-PP, Lightweight range, closed design, sealed on all sides, with relubrication facility, adjustable angle

Downloads en links

1. Link to manufacturer Link to manufacturer
