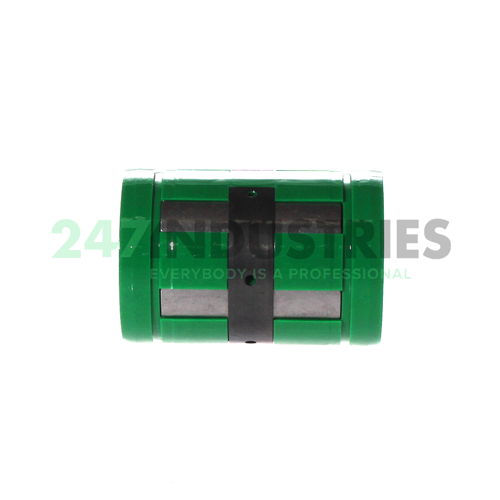

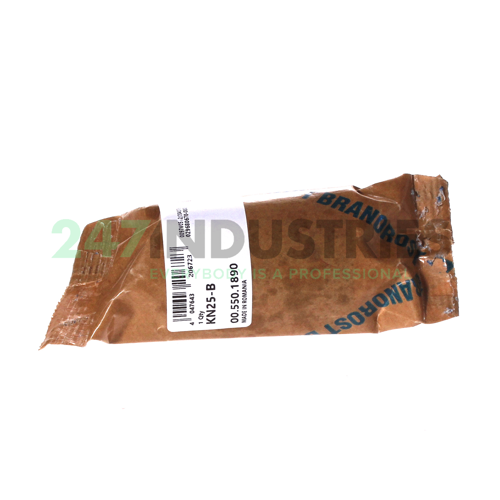

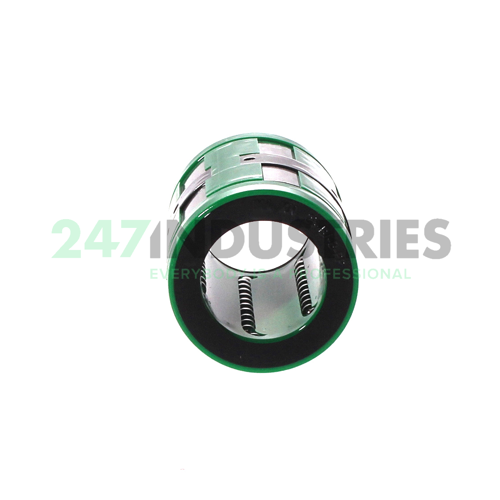

KN25-B INA

Afmetingen

1. Binnenmaat (d) mm 25
2. Buitenmaat (D) mm 40
3. Breedte (B) mm 58
4. Binnenmaat (d) inch 0.9843
5. Buitenmaat (D) inch 1.5748
6. Breedte (B) inch 2.2835
7. Lengte (L) mm 58

Suffix-omschrijving

1. B Guideways And Carriages May Only Be Combined With Each Other Within The Same Accuracy And Interchangeability Class, So A Can Only Be Combined With A, And B Can Only Be Combined With B

Technische specificaties

1. Beschikbaarheid 7 stuks
2. Merk INA
3. Item number KN25-B INA
4. Also known as 0296806700000
   KN2558
   LBCD25A
   LMES25
   R0670-025-00
   SPM25
   TK25

5. EAN 4047643206723
6. Category Lineairkogellager

Gewicht en afmetingen

1. Gewicht (kg) 0.083

Producteigenschappen

1. Afdichting Geen afdichting

Data van Schaeffler (medias)

1. Dynamische belastbaarheid dyn. (C min) 3100
2. Dynamische belastbaarheid stat. (C 0 min) 2220
3. Dynamische belastbaarheid stat. (C 0 max) 2850
4. ECLASS number 23-30-03-01
5. ECLASS2 number 23-30-03-01
6. Medias omschrijving Linear ball bearings KN..-B, Lightweight range, closed design, with relubrication facility, adjustable angle
