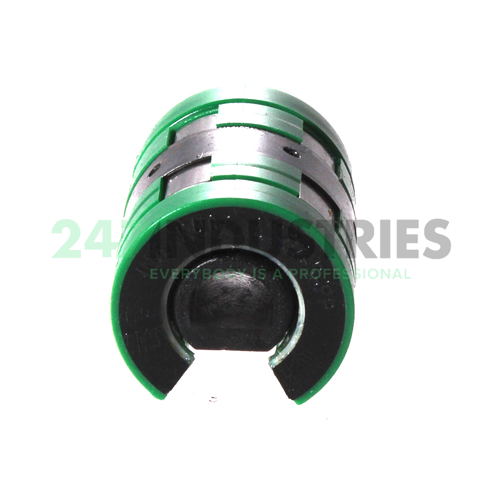

KNO12-B-PP INA

Afmetingen

1. Binnenmaat (d) mm 12
2. Buitenmaat (D) mm 22
3. Breedte (B) mm 32
4. Binnenmaat (d) inch 0.4724
5. Buitenmaat (D) inch 0.8661
6. Breedte (B) inch 1.2598
7. Lengte (L) mm 32

Suffix-omschrijving

1. B Guideways And Carriages May Only Be Combined With Each Other Within The Same Accuracy And Interchangeability Class, So A Can Only Be Combined With A, And B Can Only Be Combined With B
2. PP Lip Seal On Both Sides Of Bearing

Technische specificaties

1. Beschikbaarheid 26 stuks
2. Merk INA
3. Item number KNO12-B-PP INA
4. Also known as 0244529980000
   KNO1232PP
   LBCF12A-2LS
   LMES12UUOP
   R0671-212-40
   SPM12OPNWW
   TK12UUOP

5. EAN 4012802471229
6. Category Lineairkogellager

Gewicht en afmetingen

1. Gewicht (kg) 0.012

Producteigenschappen

1. Afdichting 2L - LS-seal at Both Sides

Data van Schaeffler (medias)

1. Dynamische belastbaarheid stat. (C 0 max) 640
2. ECLASS number 23-30-03-01
3. ECLASS2 number 23-30-03-01
4. Medias omschrijving Linear ball bearings KNO..-B-PP, Lightweight range, open design, sealed on all sides, with relubrication facility, adjustable angle
