KNO25-B INA

Afmetingen

1. Binnenmaat (d) mm 25
2. Buitenmaat (D) mm 40
3. Breedte (B) mm 58
4. Binnenmaat (d) inch 0.9843
5. Buitenmaat (D) inch 1.5748
6. Breedte (B) inch 2.2835
7. Lengte (L) mm 58

Suffix-omschrijving

1. B Guideways And Carriages May Only Be Combined With Each Other Within The Same Accuracy And Interchangeability Class, So A Can Only Be Combined With A, And B Can Only Be Combined With B

Technische specificaties

1. Beschikbaarheid 21 stuks
2. Merk INA
3. Item number KNO25-B INA
4. Also known as 0296807860000
   KNO2558
   LBCF25A
   LMES25OP
   R0671-025-00
   SPM25OPN
   TK25OP

5. EAN 4047643206679
6. Category Lineairkogellager

Gewicht en afmetingen

1. Gewicht (kg) 0.07

Producteigenschappen

1. Afdichting Geen afdichting

Data van Schaeffler (medias)

1. Dynamische belastbaarheid stat. (C 0 max) 2260
2. ECLASS number 23-30-03-01
3. ECLASS2 number 23-30-03-01

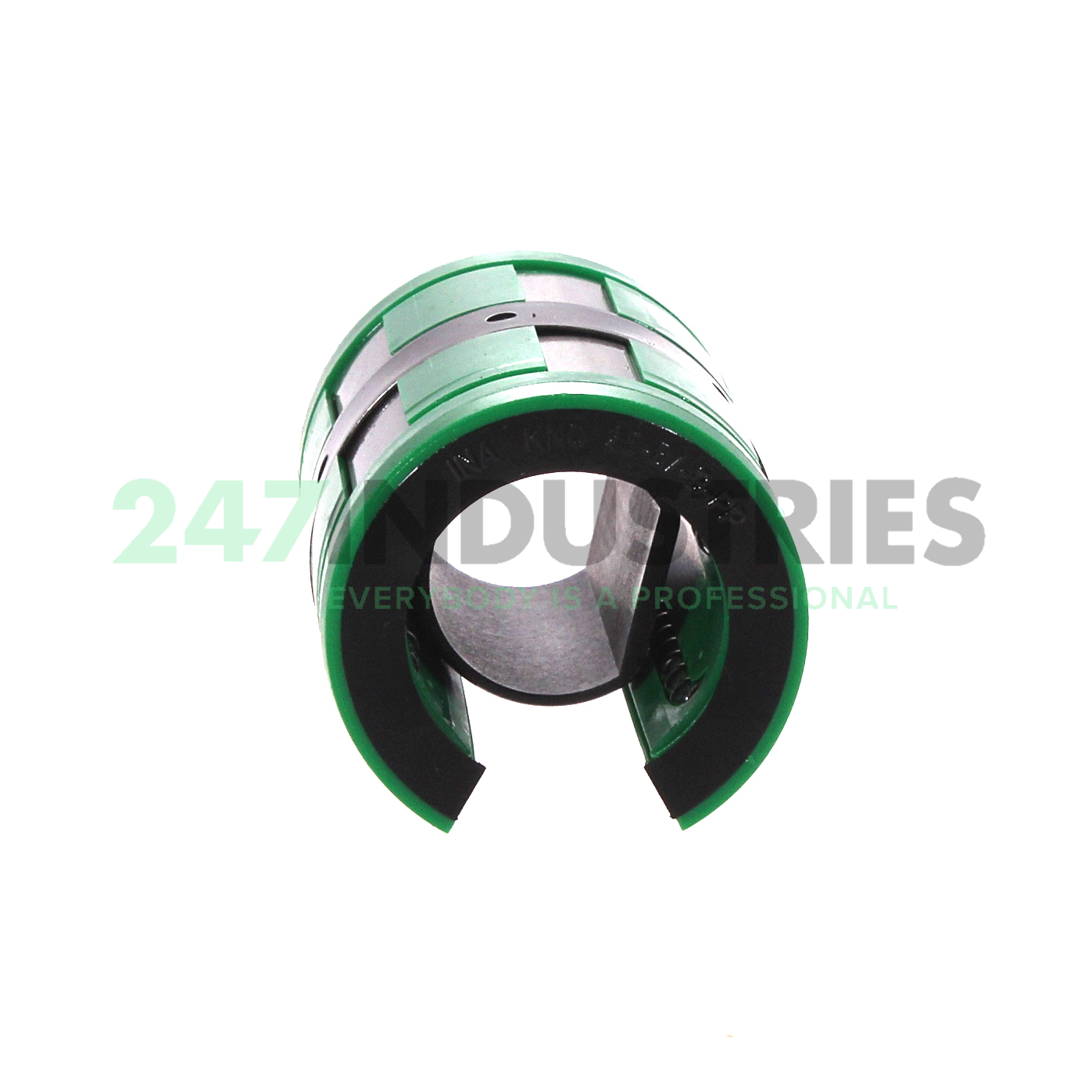

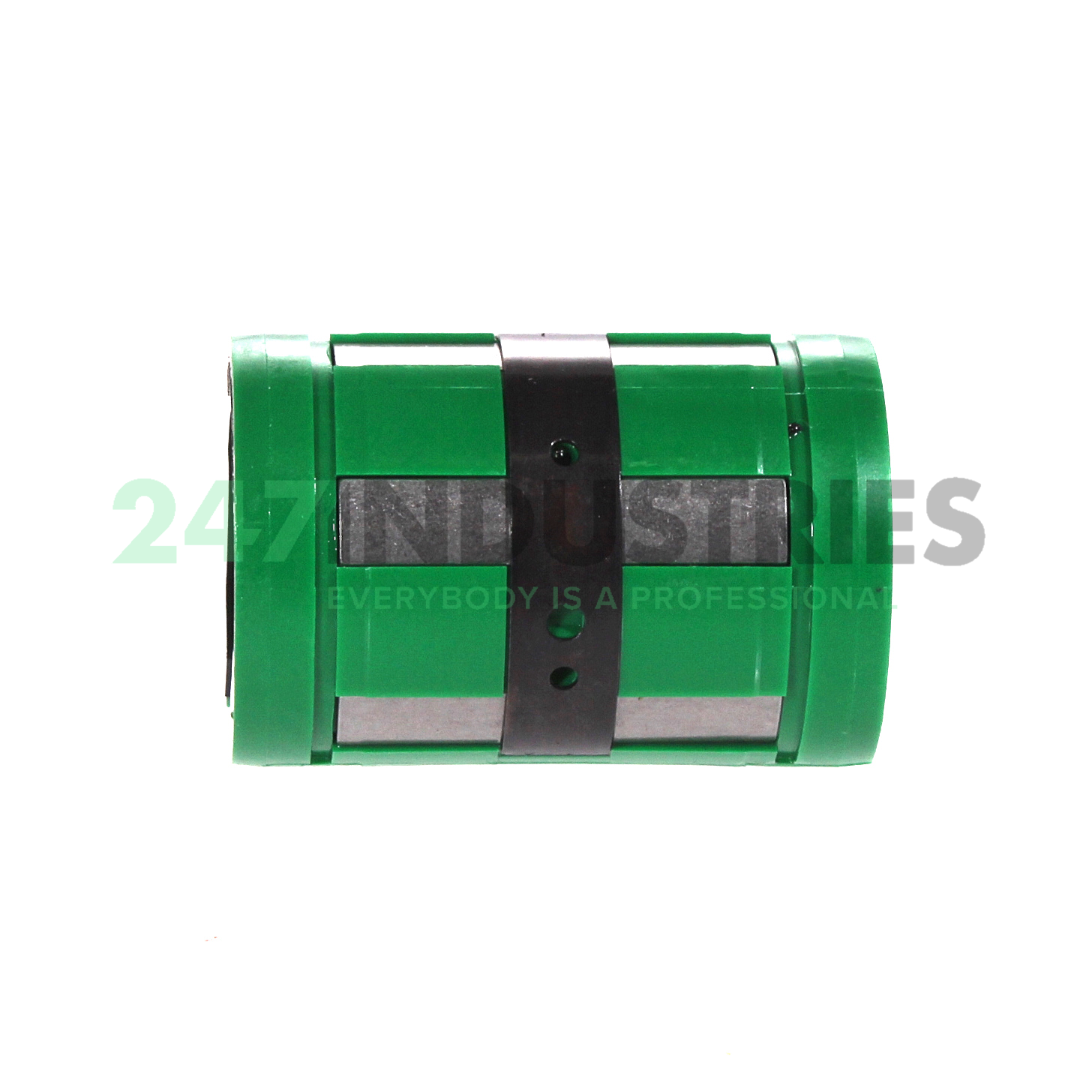

4. Medias omschrijving Linear ball bearings KNO..-B, Lightweight range, open design, with relubrication facility, adjustable angle

Downloads en links

1. Link to manufacturer Link to manufacturer
