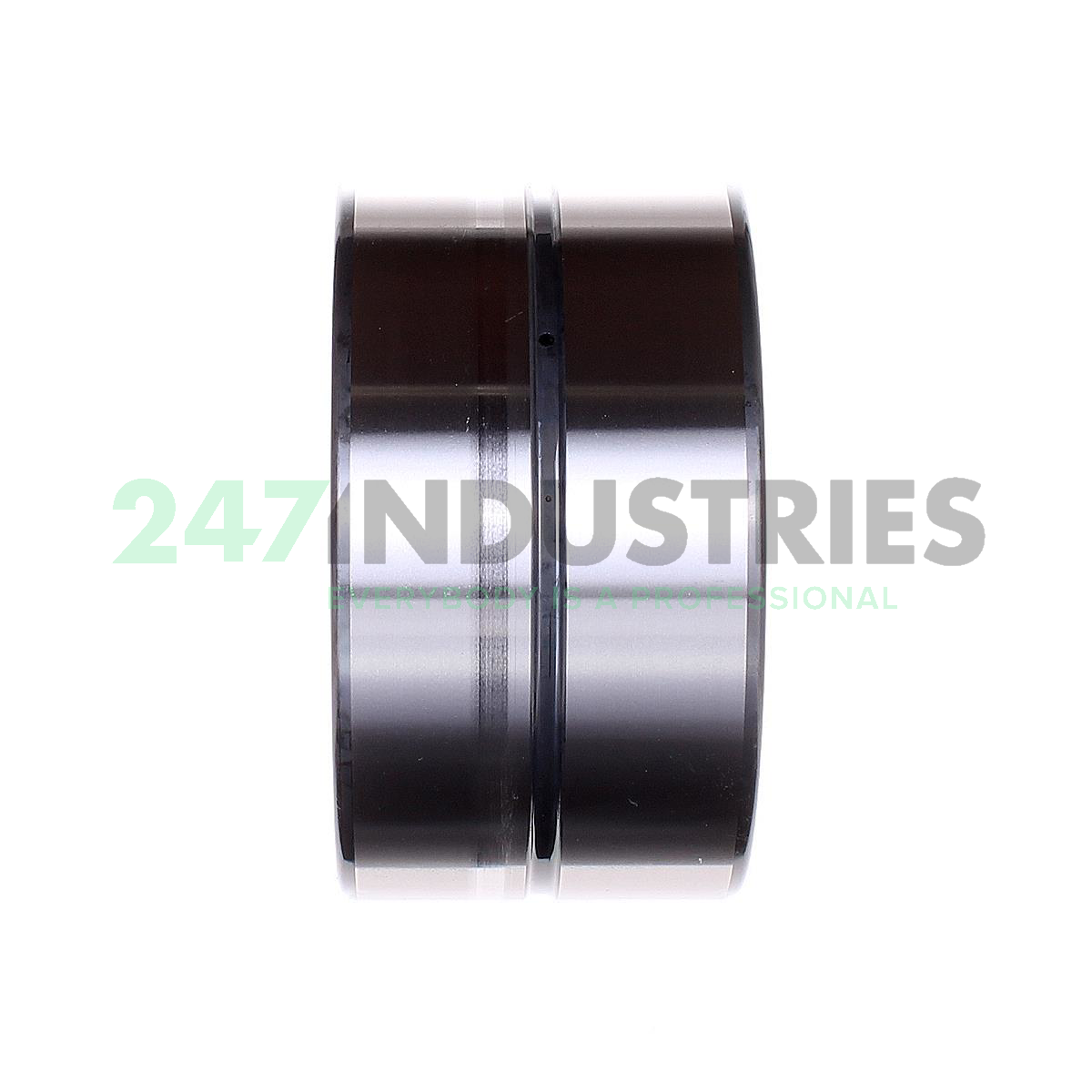

SL15918-A INA

Afmetingen

1. Binnenmaat (d) mm 90
2. Buitenmaat (D) mm 125
3. Breedte (B) mm 68
4. Binnenmaat (d) inch 3.5433
5. Buitenmaat (D) inch 4.9213
6. Breedte (B) inch 2.6772

Suffix-omschrijving

1. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Technische specificaties

1. Beschikbaarheid 3 stuks
2. Merk INA
3. Item number SL15918-A INA
4. Also known as 0001943360000

5. EAN 4012802284157
6. Category Meerrijig cilinderlager

Gewicht en afmetingen

1. Gewicht (kg) 2.6

Producteigenschappen

1. Boring C - cilindrische boring
2. Afdichting Geen afdichting
3. Type kooi FC - volrollig, geen kooi
4. Externe aanpassing Geen Externe Aanpassing
5. Interne radiale speling Cn normale interne speling
6. Precisie Standaardprecisie
7. Warmtestabilisatie Geen warmtestabilisatie - temperaturen tot 120 °C

Data van Schaeffler (medias)

1. ECLASS number 23-05-09-01
2. ECLASS2 number 23-05-09-01

Downloads en links

1. Link to manufacturer Link to manufacturer
